HV120-SM02-R - Superior Sensor Technology

Description: Differential Pressure Sensor Optimized for HVAC ±625 to ±5K Pa (±2.5 to ±20 inH2O) - Tape & Reel

Download HV120-SM02-R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

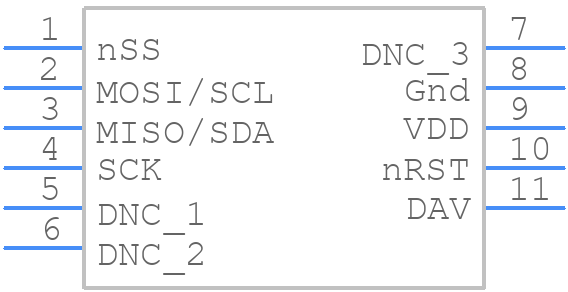

HV120-SM02-R - Superior Sensor Technology - PCB symbol
click to zoom
PCB Footprints
HV120-SM02-R - Superior Sensor Technology PCB footprint - Other - Other - SM_02
click to zoom
3D Models
HV120-SM02-R - Superior Sensor Technology - 3D model - Other - SM_02
click to zoom

HV120-SM02-R Details

  • Manufacturer Part Number:

    HV120-SM02-R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    PACKAGE-11

  • Manufacturer:

    Superior Sensor Technology

  • Accuracy-Max (%):

    0.1%

  • Additional Feature:

    PORT HEIGHT=4.32 MM

  • Body Breadth:

    12.7 mm

  • Body Height:

    3.56 mm

  • Body Length or Diameter:

    19.05 mm

  • Housing:

    PLASTIC

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    16

  • Operating Current-Max:

    3.8 mA

  • Operating Temperature-Max:

    50 °C

  • Output Interface Type:

    I2C/SPI

  • Output Range:

    0.6-2.6V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Shape/Style:

    RECTANGULAR

  • Port Type:

    STRAIGHT

  • Pressure Range-Max:

    0.725 Psi

  • Pressure Range-Min:

    -0.09 Psi

  • Pressure Sensing Mode:

    DIFFERENTIAL

  • Response Time:

    40000 µs

  • Sensors/Transducers Type:

    PRESSURE SENSOR,PIEZORESISTIVE

  • Supply Voltage-Max:

    3.5 V

  • Supply Voltage-Min:

    2.8 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

HV120-SM02-R Frequently Asked Questions (FAQs)

  • Superior Sensor Technology provides a recommended PCB layout and land pattern in their application note AN-001, which can be found on their website. It's essential to follow this layout to ensure proper thermal management and to minimize noise and interference.
  • The HV120-SM02-R is a calibrated device, and no additional calibration is required. However, it's recommended to follow the calibration procedure outlined in the datasheet to ensure that the device is operating within its specified accuracy and repeatability.
  • The HV120-SM02-R is rated for operation from -40°C to 125°C. However, it's essential to note that the device's accuracy and repeatability may degrade at extreme temperatures. Consult the datasheet for more information on temperature-related specifications.
  • The HV120-SM02-R is not designed for use in humid or wet environments. It's essential to follow proper sealing and encapsulation procedures to prevent moisture ingress, which can affect the device's performance and reliability.
  • The recommended power-up sequence for the HV120-SM02-R is to apply the analog supply voltage (VCC) before the digital supply voltage (VDD). This ensures that the device's internal circuitry is properly initialized and configured.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HV120-SM02-R Overview

Use the download button to access the HV120-SM02-R schematic symbol, PCB footprint, and 3D model.
