HV2701FG-G - Microchip

Description: The Supertex HV2701 is a low charge injection, 16-channel, high voltage, analog switch integrated circuit (IC) with bleed resistors. The device can be used in applications requiring high voltage switching controlled by low voltage control signals, such as medical ultrasound imaging and piezoelectric transducer drivers. The bleed resistors eliminate voltage built up on capacitive loads such as piezoelectric transducers.

Download HV2701FG-G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

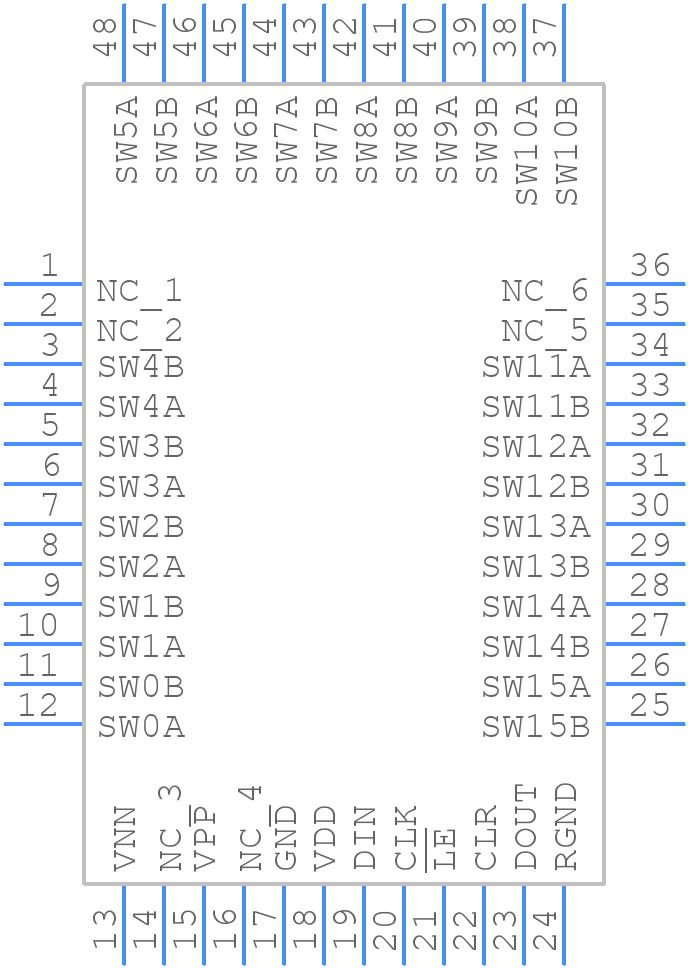

HV2701FG-G - Microchip - PCB symbol
click to zoom
PCB Footprints
HV2701FG-G - Microchip PCB footprint - Quad Flat Packages - Quad Flat Packages - LQFP
click to zoom
3D Models
HV2701FG-G - Microchip - 3D model - Quad Flat Packages - LQFP
click to zoom

HV2701FG-G Details

  • Manufacturer Part Number:

    HV2701FG-G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    48

  • Manufacturer Package Code:

    LQFP-48

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Additional Feature:

    IT ALSO REQUIRES VPP (40V TO VNN +200V) AND VNN (-40V TO -160V) SUPPLY

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • Input Voltage-Max:

    30 V

  • Input Voltage-Min:

    -30 V

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Normal Position:

    NO

  • Number of Channels:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Off-state Isolation-Nom:

    33 dB

  • On-state Resistance Match-Nom:

    1.9 Ω

  • On-state Resistance-Max (Ron):

    38 Ω

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Supply Current-Max (Isup):

    4 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    5000 ns

  • Switch-on Time-Max:

    5000 ns

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

HV2701FG-G Frequently Asked Questions (FAQs)

  • A good PCB layout for the HV2701FG-G involves keeping the high-voltage traces short and away from low-voltage traces, using a solid ground plane, and placing decoupling capacitors close to the device. Microchip provides a recommended PCB layout in the HV2701FG-G evaluation board documentation.
  • To ensure reliable operation in high-temperature environments, ensure proper heat sinking, use a thermally conductive material for the PCB, and follow the recommended operating conditions outlined in the datasheet. Additionally, consider using thermal simulation tools to optimize the design.
  • When handling the HV2701FG-G, it's essential to follow proper ESD protection procedures, such as wearing an ESD strap, using ESD-safe work surfaces, and storing the devices in ESD-safe packaging. Also, ensure that the device is properly grounded during handling and assembly.
  • While the HV2701FG-G is designed for isolated topologies, it can be used in non-isolated topologies with proper design considerations. However, this may require additional components and design modifications to ensure safe and reliable operation.
  • The HV2701FG-G's limited lifetime writes require careful consideration in system design. Implement a wear-leveling mechanism, use a robust data storage strategy, and ensure that the system can handle the limited number of writes to prevent premature device failure.
