HV2708T-C/R8X - Microchip

Description: Analog Switch ICs HV2708, HV Analog SW without HV Supplies w/Bleed Resistors on one side of SW

Download HV2708T-C/R8X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

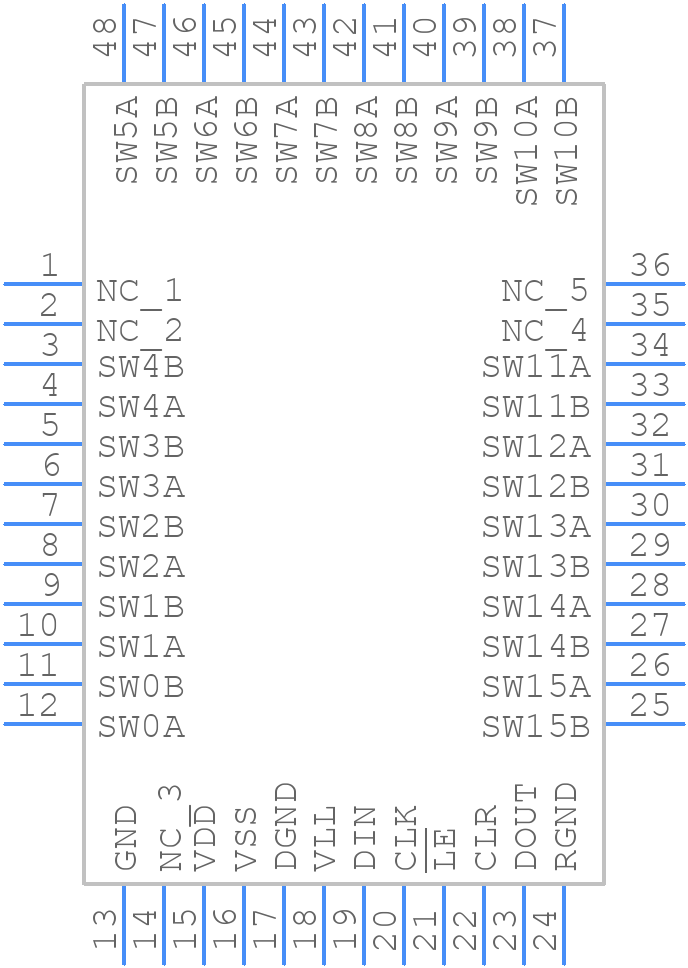

HV2708T-C/R8X - Microchip - PCB symbol
click to zoom
PCB Footprints
HV2708T-C/R8X - Microchip PCB footprint - Quad Flat Packages - Quad Flat Packages - 48-PIN LQFP
click to zoom
3D Models
HV2708T-C/R8X - Microchip - 3D model - Quad Flat Packages - 48-PIN LQFP
click to zoom

HV2708T-C/R8X Details

  • Manufacturer Part Number:

    HV2708T-C/R8X

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    48

  • Manufacturer Package Code:

    LQFP-48

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • Additional Feature:

    ALSO REQUIRES 4.5 TO 6.3 V SUPPLY

  • Analog IC - Other Type:

    SPDT

  • Input Voltage-Max:

    100 V

  • Input Voltage-Min:

    -100 V

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Neg Supply Voltage-Max (Vsup):

    -6.3 V

  • Neg Supply Voltage-Min (Vsup):

    -4.5 V

  • Number of Channels:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Off-state Isolation-Nom:

    64 dB

  • On-state Resistance Match-Nom:

    5.75 Ω

  • On-state Resistance-Max (Ron):

    23 Ω

  • Operating Temperature-Max:

    70 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Seated Height-Max:

    1.6 mm

  • Signal Current-Max:

    0.5 A

  • Supply Current-Max (Isup):

    0.5 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    5000 ns

  • Switch-on Time-Max:

    5000 ns

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

HV2708T-C/R8X Frequently Asked Questions (FAQs)

  • Microchip recommends a 4-layer PCB with a solid ground plane, and to keep the high-voltage traces short and away from sensitive analog signals. Additionally, use a common mode choke and decoupling capacitors to reduce EMI.
  • Follow the recommended thermal design guidelines, including using a heat sink, thermal interface material, and ensuring good airflow. Also, derate the output current and voltage according to the temperature derating curve in the datasheet.
  • The maximum allowable voltage drop is approximately 1.5V, as specified in the datasheet. Exceeding this limit may lead to reduced performance, increased power dissipation, or even device failure.
  • Yes, but with caution. The HV2708T-C/R8X is designed for isolated topologies, and using it in a non-isolated topology may require additional safety considerations, such as ensuring the high-voltage node is not accessible to the user.
  • Use a systematic approach to troubleshoot, including checking the input voltage, output voltage, and current sense resistors. Also, verify the PCB layout, component values, and soldering quality. Consult the datasheet and application notes for guidance.
