HV2803/AHA - Microchip

Description: ±4.5V ~ 6.3V, 0°C ~ 70°C, 15Ohm, Ultrasound Switch IC 32 Channel 132-TFBGA (12x12)

Download HV2803/AHA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
HV2803/AHA - Microchip - PCB symbol
click to zoom
PCB Footprints

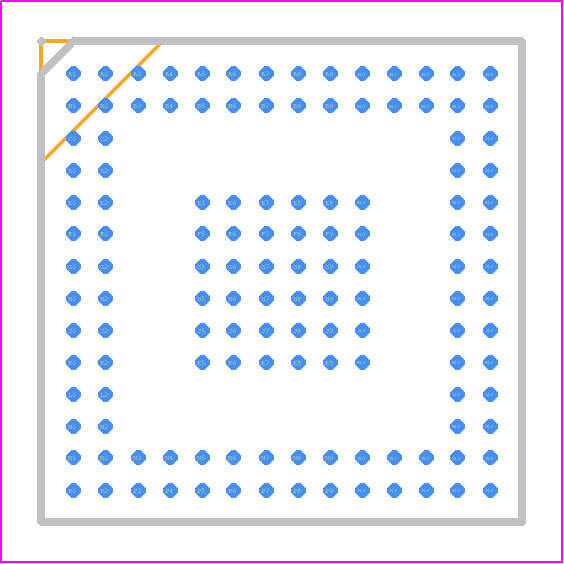

HV2803/AHA - Microchip PCB footprint - BGA - BGA - 132-Ball Thin Fine Pitch Ball Grid Array (AHA)-12x12x1.2mm
click to zoom
3D Models
HV2803/AHA - Microchip - 3D model - BGA - 132-Ball Thin Fine Pitch Ball Grid Array (AHA)-12x12x1.2mm
click to zoom

HV2803/AHA Details

  • Manufacturer Part Number:

    HV2803/AHA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TFBGA-132

  • Pin Count:

    132

  • Manufacturer Package Code:

    TFBGA-132

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.29.00.95

  • Factory Lead Time:

    8 Weeks

  • Date Of Intro:

    2017-12-14

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • Analog IC - Other Type:

    SPST

  • Input Voltage-Max:

    100 V

  • Input Voltage-Min:

    -100 V

  • JESD-30 Code:

    S-PBGA-B132

  • JESD-609 Code:

    e1

  • Length:

    12 mm

  • Neg Supply Voltage-Max (Vsup):

    -4.5 V

  • Neg Supply Voltage-Min (Vsup):

    -6.3 V

  • Neg Supply Voltage-Nom (Vsup):

    -6 V

  • Normal Position:

    NO

  • Number of Channels:

    32

  • Number of Functions:

    16

  • Number of Terminals:

    132

  • Off-state Isolation-Nom:

    70 dB

  • On-state Resistance Match-Nom:

    3 Ω

  • On-state Resistance-Max (Ron):

    15 Ω

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFBGA

  • Package Equivalence Code:

    BGA132,14X14,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, THIN PROFILE, FINE PITCH

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.2 mm

  • Signal Current-Max:

    3 A

  • Supply Current-Max (Isup):

    6 mA

  • Supply Voltage-Max (Vsup):

    6.3 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    6 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    5000 ns

  • Switch-on Time-Max:

    5000 ns

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    12 mm
