HV2903/AHA - Microchip

Description: 32-Channel, High-Voltage Analog Switch

Download HV2903/AHA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
HV2903/AHA - Microchip - PCB symbol
click to zoom
PCB Footprints

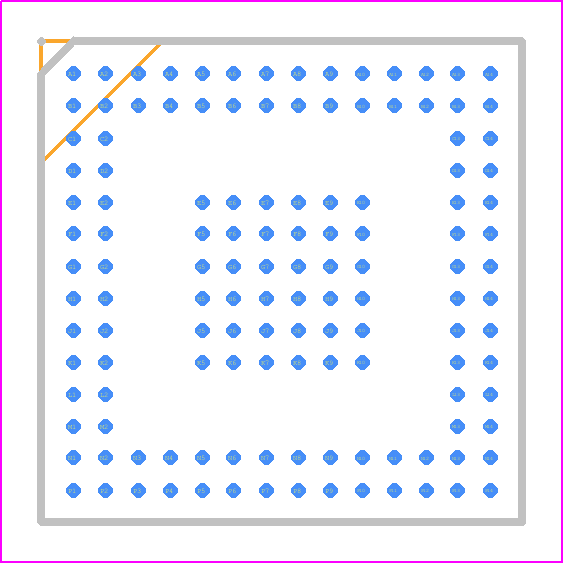

HV2903/AHA - Microchip PCB footprint - BGA - BGA - 132-Ball Thin Fine Pitch Ball Grid Array (AHA)-12x12x1.2mm
click to zoom
3D Models
HV2903/AHA - Microchip - 3D model - BGA - 132-Ball Thin Fine Pitch Ball Grid Array (AHA)-12x12x1.2mm
click to zoom

HV2903/AHA Details

  • Manufacturer Part Number:

    HV2903/AHA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TFBGA-132

  • Pin Count:

    132

  • Manufacturer Package Code:

    TFBGA-132

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.29.00.95

  • Factory Lead Time:

    26 Weeks

  • Date Of Intro:

    2017-12-14

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • Analog IC - Other Type:

    SPST

  • Input Voltage-Max:

    100 V

  • Input Voltage-Min:

    -100 V

  • JESD-30 Code:

    S-PBGA-B132

  • JESD-609 Code:

    e1

  • Length:

    12 mm

  • Neg Supply Voltage-Max (Vsup):

    -4.5 V

  • Neg Supply Voltage-Min (Vsup):

    -6.3 V

  • Neg Supply Voltage-Nom (Vsup):

    -6 V

  • Normal Position:

    NO

  • Number of Channels:

    32

  • Number of Functions:

    16

  • Number of Terminals:

    132

  • Off-state Isolation-Nom:

    70 dB

  • On-state Resistance Match-Nom:

    3 Ω

  • On-state Resistance-Max (Ron):

    15 Ω

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFBGA

  • Package Equivalence Code:

    BGA132,14X14,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, THIN PROFILE, FINE PITCH

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.2 mm

  • Signal Current-Max:

    3 A

  • Supply Current-Max (Isup):

    6 mA

  • Supply Voltage-Max (Vsup):

    6.3 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    6 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    5000 ns

  • Switch-on Time-Max:

    5000 ns

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    12 mm

HV2903/AHA Frequently Asked Questions (FAQs)

  • Microchip recommends following a 4-layer PCB stack-up with a solid ground plane, and using a shielded cable for the high-voltage output. Additionally, keep the high-voltage traces away from sensitive analog signals and use a common mode choke to reduce EMI.
  • To ensure reliable operation in high-temperature environments, ensure good thermal management by providing adequate heat sinking and airflow. Also, derate the output voltage and current according to the datasheet's thermal derating curves.
  • Microchip recommends using low-ESR ceramic capacitors (e.g., X5R or X7R) with a voltage rating of at least 2x the input voltage. For the output, use a capacitor with a voltage rating of at least 2x the output voltage. The recommended capacitance values are 10uF to 22uF for the input and 1uF to 10uF for the output.
  • First, verify that the input voltage and current are within the recommended range. Check for proper PCB layout and routing, and ensure that the output capacitor is properly sized. Use an oscilloscope to monitor the output voltage and current, and check for any signs of oscillation or instability. Consult the datasheet and application notes for troubleshooting guides and FAQs.
  • Yes, the HV2903/AHA can be used in a flyback converter topology. However, ensure that the transformer is properly designed and wound to handle the high-voltage output, and follow the datasheet's guidelines for transformer selection and design.
