HV2904/AHA - Microchip

HV2904/AHA Details

• Manufacturer Part Number:

  HV2904/AHA

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

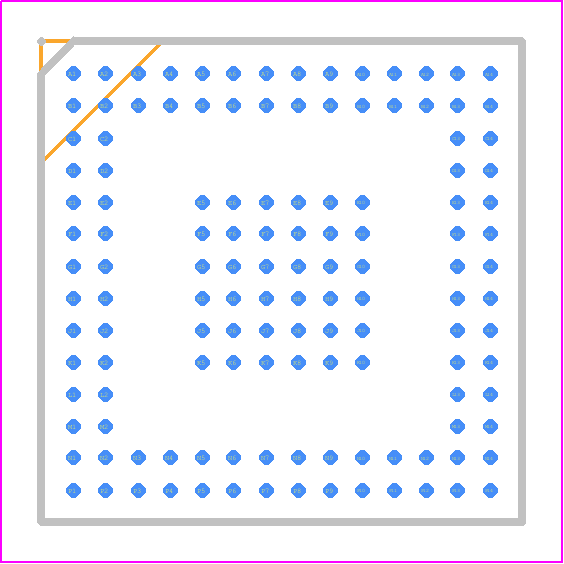

• Package Description:

  TFBGA-132

• Pin Count:

  132

• Manufacturer Package Code:

  TFBGA-132

• Country Of Origin:

  Taiwan

• ECCN Code:

  EAR99

• HTS Code:

  8541.29.00.95

• Factory Lead Time:

  8 Weeks

• Date Of Intro:

  2017-12-14

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  19

• Analog IC - Other Type:

  SPST

• Input Voltage-Max:

  100 V

• Input Voltage-Min:

  -100 V

• JESD-30 Code:

  S-PBGA-B132

• JESD-609 Code:

  e1

• Length:

  12 mm

• Neg Supply Voltage-Max (Vsup):

  -4.5 V

• Neg Supply Voltage-Min (Vsup):

  -6.3 V

• Neg Supply Voltage-Nom (Vsup):

  -6 V

• Normal Position:

  NO

• Number of Channels:

  32

• Number of Functions:

  16

• Number of Terminals:

  132

• Off-state Isolation-Nom:

  70 dB

• On-state Resistance Match-Nom:

  3 Ω

• On-state Resistance-Max (Ron):

  15 Ω

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TFBGA

• Package Equivalence Code:

  BGA132,14X14,32

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, THIN PROFILE, FINE PITCH

• Screening Level:

  TS 16949

• Seated Height-Max:

  1.2 mm

• Signal Current-Max:

  3 A

• Supply Current-Max (Isup):

  6 mA

• Supply Voltage-Max (Vsup):

  6.3 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  6 V

• Surface Mount:

  YES

• Switch-off Time-Max:

  5000 ns

• Switch-on Time-Max:

  5000 ns

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Terminal Form:

  BALL

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  BOTTOM

• Width:

  12 mm
