HV3418PG-G - Microchip

HV3418PG-G Details

• Manufacturer Part Number:

  HV3418PG-G

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

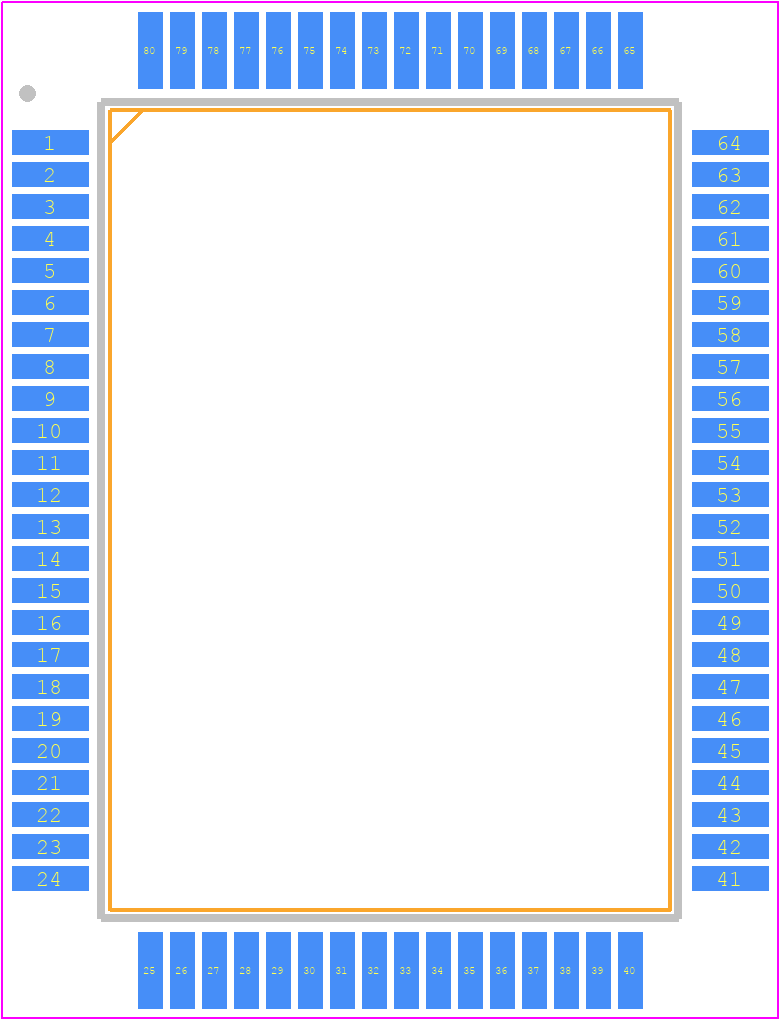

• Package Description:

  QFP-80

• Pin Count:

  80

• Manufacturer Package Code:

  PQFP-80

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  25

• Driver Number of Bits:

  64

• Input Characteristics:

  STANDARD

• Interface IC Type:

  SIPO BASED PERIPHERAL DRIVER

• JESD-30 Code:

  R-PQFP-G80

• JESD-609 Code:

  e3

• Length:

  20 mm

• Number of Functions:

  1

• Number of Terminals:

  80

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current Flow Direction:

  SOURCE AND SINK

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QFP

• Package Equivalence Code:

  PQFP80,.94X.70,32

• Package Shape:

  RECTANGULAR

• Package Style:

  FLATPACK

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  3.4 mm

• Supply Current-Max:

  25 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Supply Voltage1-Max:

  180 V

• Supply Voltage1-Min:

  60 V

• Surface Mount:

  YES

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  QUAD

• Turn-off Time:

  0.0015 µs

• Turn-on Time:

  0.0015 µs

• Width:

  14 mm
