A good PCB layout for the HV509K6-G involves keeping the high-voltage traces short and away from sensitive analog signals. Use a solid ground plane and decouple the power supplies with capacitors. Microchip provides a reference design and layout guidelines in their application notes.
To ensure reliable operation in high-temperature environments, follow the recommended thermal management guidelines in the datasheet. Use a heat sink or thermal pad to dissipate heat, and ensure good airflow around the device. Also, consider derating the output current and voltage according to the temperature derating curves in the datasheet.
To ensure EMI and EMC compliance, use a shielded enclosure, keep the high-voltage traces short, and use a common-mode choke or ferrite bead to filter the output. Also, follow the recommended layout guidelines and use a low-pass filter on the output to reduce electromagnetic emissions.
To troubleshoot issues with the HV509K6-G, start by checking the input power supply, output voltage, and current. Verify that the device is properly soldered and that the PCB layout follows the recommended guidelines. Use an oscilloscope to check for voltage ripple or oscillations, and a thermal camera to identify hotspots. Consult the datasheet and application notes for troubleshooting guides and FAQs.
When using the HV509K6-G in a high-reliability or safety-critical application, consider the device's failure modes, fault tolerance, and redundancy. Implement redundant power supplies, overvoltage protection, and overcurrent protection. Follow the recommended design guidelines and consult with a qualified engineer or safety expert to ensure compliance with relevant safety standards.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HV509K6-G Overview

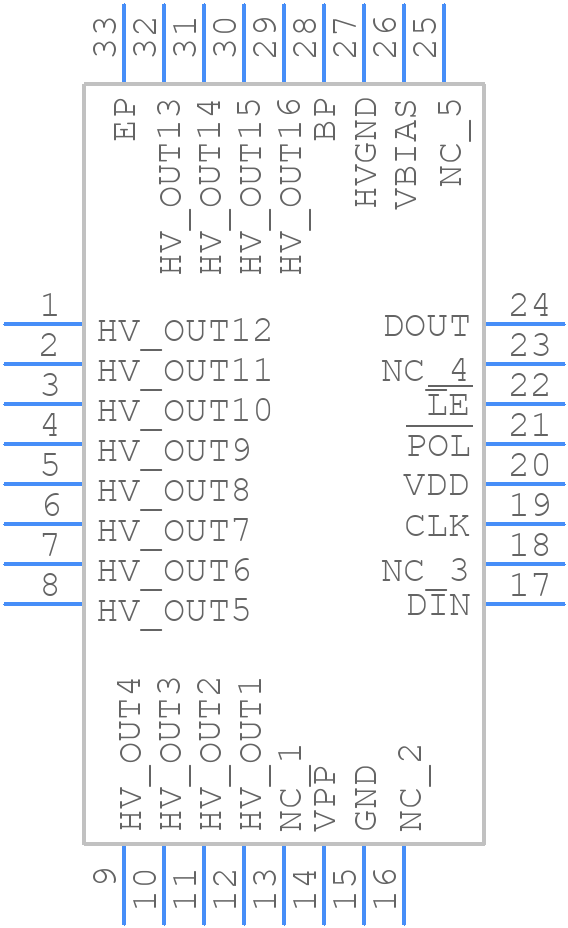

Use the download button to access the HV509K6-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HV509,
or try a keyword search, such as Peripheral Drivers
