HV528K6-G - Microchip

Description: Serial to Parallel Logic Converters 16 Channel Serial to Parallel Converters

Download HV528K6-G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

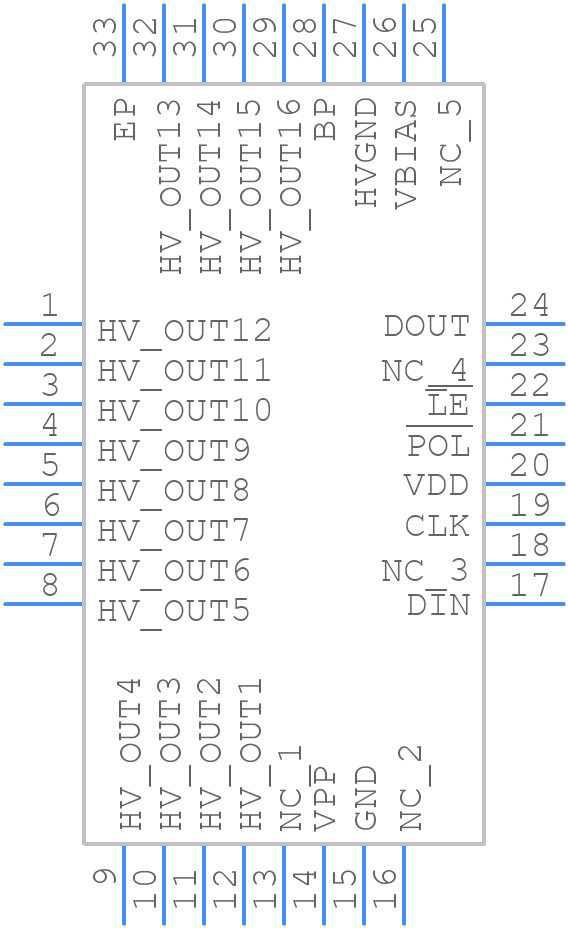

HV528K6-G - Microchip - PCB symbol
click to zoom
PCB Footprints
HV528K6-G - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-Lead QFN-ren2
click to zoom
3D Models
HV528K6-G - Microchip - 3D model - Quad Flat No-Lead - 32-Lead QFN-ren2
click to zoom

HV528K6-G Details

  • Manufacturer Part Number:

    HV528K6-G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Pin Count:

    32

  • Manufacturer Package Code:

    VQFN-32

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.29.00.95

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    0

  • Interface IC Type:

    SIPO BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    70 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    1 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    3 V

  • Supply Voltage1-Max:

    200 V

  • Supply Voltage1-Min:

    50 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

HV528K6-G Frequently Asked Questions (FAQs)

  • Microchip recommends following a 4-layer PCB stackup with a solid ground plane, and using a star-connection for the high-voltage pins to minimize noise and EMI. Additionally, keep the high-voltage traces short and away from sensitive analog signals.
  • To ensure reliable operation in high-temperature environments, ensure proper thermal management by providing adequate heat sinking, using a thermally conductive PCB material, and following the recommended operating temperature range of -40°C to 125°C. Also, consider derating the device's performance at higher temperatures.
  • When selecting external components, consider the voltage rating, current handling, and power dissipation capabilities. Ensure that the components can handle the high-voltage and high-frequency switching of the HV528K6-G. Microchip provides a list of recommended components in the datasheet and application notes.
  • To troubleshoot issues with the HV528K6-G, use a combination of visual inspection, oscilloscope measurements, and logic analyzer captures. Check for proper power supply decoupling, ensure correct pin connections, and verify that the device is operating within its recommended specifications. Microchip also provides a troubleshooting guide in the application notes.
  • The high-voltage pins of the HV528K6-G require special consideration during PCB design and assembly. Ensure that the PCB material can withstand the high-voltage stress, and that the assembly process does not damage the device or the PCB. Follow the recommended PCB design guidelines and assembly procedures to avoid damage or electrical shock.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HV528K6-G Overview

Use the download button to access the HV528K6-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HV528, or try a keyword search, such as Peripheral Drivers
