HV5530PG-G - Microchip

Description: Serial to Parallel Logic Converters 300V 32Ch Open D Out

Download HV5530PG-G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

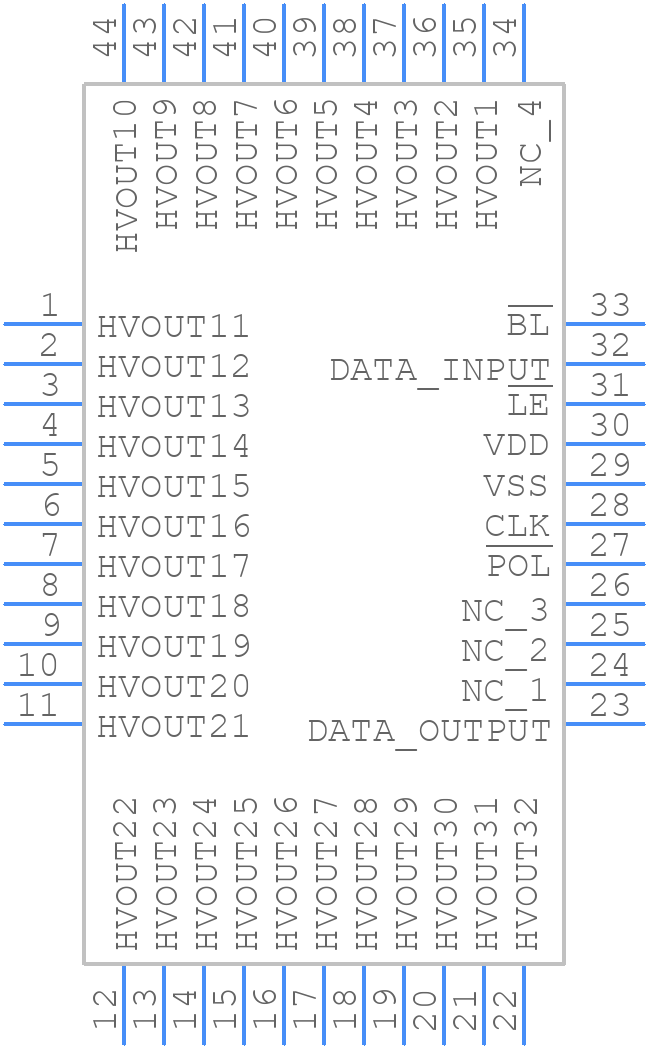

Symbol
HV5530PG-G - Microchip - PCB symbol
click to zoom

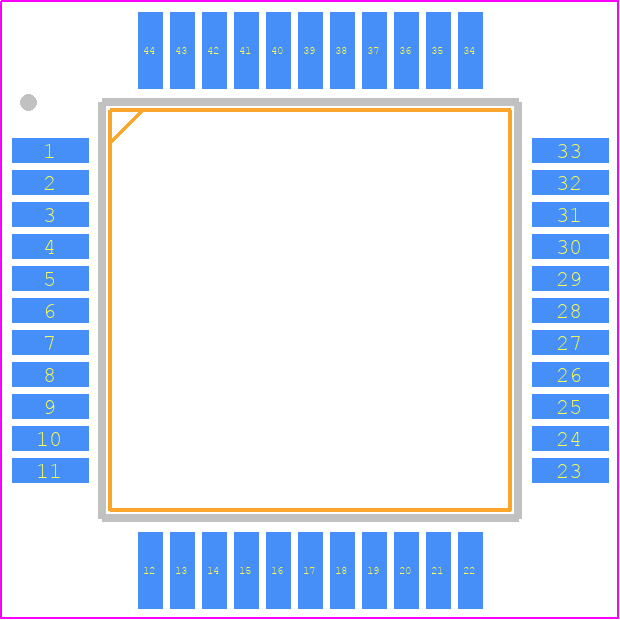

PCB Footprints
HV5530PG-G - Microchip PCB footprint - Quad Flat Packages - Quad Flat Packages - 44-Lead PQFP Package Outline (PG)
click to zoom
3D Models
HV5530PG-G - Microchip - 3D model - Quad Flat Packages - 44-Lead PQFP Package Outline (PG)
click to zoom

HV5530PG-G Details

  • Manufacturer Part Number:

    HV5530PG-G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    10 X 10 MM, 2.45 MM HEIGHT, 0.80 MM PITCH, GREEN, PLASTIC, QFP-44

  • Pin Count:

    44

  • Manufacturer Package Code:

    PQFP-44

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.29.00.95

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Data Input Mode:

    SERIAL

  • Interface IC Type:

    EL DISPLAY DRIVER

  • JESD-30 Code:

    S-PQFP-G44

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    32

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Equivalence Code:

    QFP44,.52SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • Qualification Status:

    Not Qualified

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    2.35 mm

  • Supply Current-Max:

    15 mA

  • Supply Voltage-Max:

    13.2 V

  • Supply Voltage-Min:

    10.8 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Width:

    10 mm

  • fmax-Min:

    8 MHz

HV5530PG-G Frequently Asked Questions (FAQs)

  • Microchip provides a recommended layout and routing guide in their application note AN1041, which includes guidelines for PCB layout, component placement, and routing to minimize noise and ensure optimal performance.
  • The HV5530PG-G has high voltage input and output pins that require special handling to prevent damage. It is recommended to use a high voltage-rated capacitor and resistor in series with the input pin to limit the voltage and current, and to use a voltage limiter or clamp circuit to protect the output pin.
  • The HV5530PG-G has an operating temperature range of -40°C to +125°C, but it is recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
  • The HV5530PG-G can be programmed using a serial interface to set the output voltage and current. The device has a built-in voltage reference and a programmable gain amplifier that allows the user to set the output voltage and current using a digital potentiometer or a microcontroller.
  • The HV5530PG-G has built-in ESD protection and latch-up prevention measures, including ESD diodes and clamp circuits to protect the device from electrostatic discharge and latch-up. However, it is still recommended to follow proper ESD handling and storage procedures to prevent damage.
