![HV56020T-V/KXX - Microchip - 3D model - Other - 43-Lead Very Thin Plastic Quad Flat, No Lead Package (KXX) - 7x7 mm Body [VQFN]](https://media.componentsearchengine.com/images/available.svg?v=0.75.1)
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for HV56020T-V/KXX
- Part Number HV56020T-V/KXX
- Manufacturer Microchip
- Pin Count 46
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - 43-Lead Very Thin Plastic Quad Flat, No Lead Package (KXX) - 7x7 mm Body [VQFN]
- Released Date May 17, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
HV56020T-V/KXX Details
-
Manufacturer Part Number:
HV56020T-V/KXX
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
VQFN-43
-
Pin Count:
43
-
Manufacturer Package Code:
VQFN-43
-
Country Of Origin:
Mainland China
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Factory Lead Time:
6 Weeks
-
Date Of Intro:
2020-03-23
-
Manufacturer:
Microchip Technology Inc
HV56020T-V/KXX Frequently Asked Questions (FAQs)
-
Microchip recommends following a star-grounding topology, keeping the high-voltage traces short and away from low-voltage traces, and using a solid ground plane to minimize noise and EMI. Additionally, it's essential to follow the recommended PCB layout guidelines provided in the datasheet and application notes.
-
To ensure reliable operation in high-temperature environments, it's crucial to follow the recommended thermal management guidelines, such as using a heat sink, ensuring good airflow, and keeping the device within the specified operating temperature range. Additionally, consider using thermal interface materials and following the recommended PCB design guidelines for thermal dissipation.
-
When selecting external components, consider the voltage rating, current handling, and power dissipation capabilities. Ensure that the components can handle the high-voltage and high-current requirements of the HV56020T-V/KXX. Additionally, consider the component's tolerance, temperature coefficient, and reliability to ensure optimal performance and reliability.
-
To troubleshoot and debug issues with the HV56020T-V/KXX, use a systematic approach, starting with verifying the power supply, clock, and reset signals. Use oscilloscopes and logic analyzers to monitor the signals and identify any anomalies. Consult the datasheet, application notes, and Microchip's technical support resources for guidance on troubleshooting and debugging.
-
When using the HV56020T-V/KXX in a non-standard or custom application, ensure that the device is operated within its specified ratings and guidelines. Consult with Microchip's technical support and consider performing additional testing and validation to ensure the device meets the specific requirements of the custom application.
Trust Checks
Expert Contribution
System Verified
Community Approved
HV56020T-V/KXX Overview

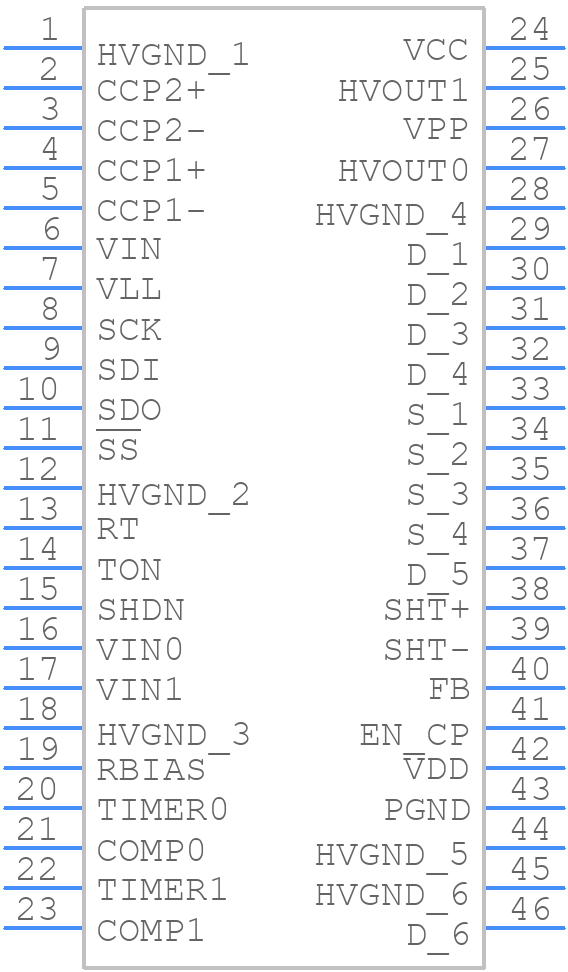

Use the download button to access the HV56020T-V/KXX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HV560,
or try a keyword search, such as Operational Amplifiers
