10 X 10 MM, 2.45 MM HEIGHT, 0.80 MM PITCH, GREEN, PLASTIC, MO-112AA-2, QFP-44
Pin Count:
44
Manufacturer Package Code:
PQFP-44
Country Of Origin:
Malaysia
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Factory Lead Time:
7 Weeks
Manufacturer:
Microchip Technology Inc
YTEOL:
10
Data Input Mode:
SERIAL
Display Mode:
DOT MATRIX
Interface IC Type:
EL DISPLAY DRIVER
JESD-30 Code:
S-PQFP-G44
JESD-609 Code:
e3
Length:
10 mm
Multiplexed Display Capability:
NO
Number of Functions:
1
Number of Segments:
32
Number of Terminals:
44
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Characteristics:
OPEN-DRAIN
Output Polarity:
TRUE
Package Body Material:
PLASTIC/EPOXY
Package Code:
QFP
Package Equivalence Code:
QFP44,.52SQ,32
Package Shape:
SQUARE
Package Style:
FLATPACK
Qualification Status:
Not Qualified
Screening Level:
TS 16949
Seated Height-Max:
2.35 mm
Supply Current-Max:
15 mA
Supply Voltage-Max:
13.2 V
Supply Voltage-Min:
10.8 V
Supply Voltage-Nom:
12 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.8 mm
Terminal Position:
QUAD
Width:
10 mm
fmax-Min:
8 MHz
HV5622PG-G Frequently Asked Questions (FAQs)
Microchip recommends following good PCB design practices, such as separating analog and digital grounds, using a solid ground plane, and minimizing trace lengths and loops. Additionally, placing the device near the power supply and using a common mode choke can help reduce EMI.
To ensure reliable communication, use a reliable communication protocol such as SPI or I2C, and implement error checking and correction mechanisms. Also, ensure that the microcontroller and HV5622PG-G are properly synchronized and that the communication bus is properly terminated.
The HV5622PG-G has a maximum junction temperature of 150°C. Ensure good airflow around the device, and consider using a heat sink or thermal interface material to reduce thermal resistance. Also, avoid overheating the device by ensuring that the power supply voltage and current are within the recommended specifications.
Use a logic analyzer or oscilloscope to monitor the communication bus and verify that the signals are correct. Check the power supply voltage and current, and ensure that the device is properly configured and initialized. Also, consult the datasheet and application notes for troubleshooting guidelines and common pitfalls to avoid.
Yes, in high-reliability or safety-critical applications, ensure that the device is properly validated and qualified for the specific use case. Implement redundant systems and error detection mechanisms to ensure fault tolerance. Also, follow relevant industry standards and guidelines, such as IEC 61508 or DO-254, to ensure compliance with safety and reliability requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HV5622PG-G Overview

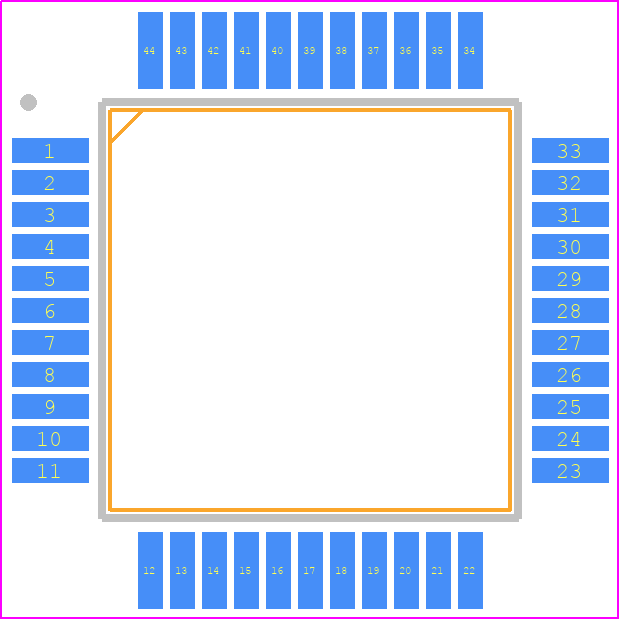

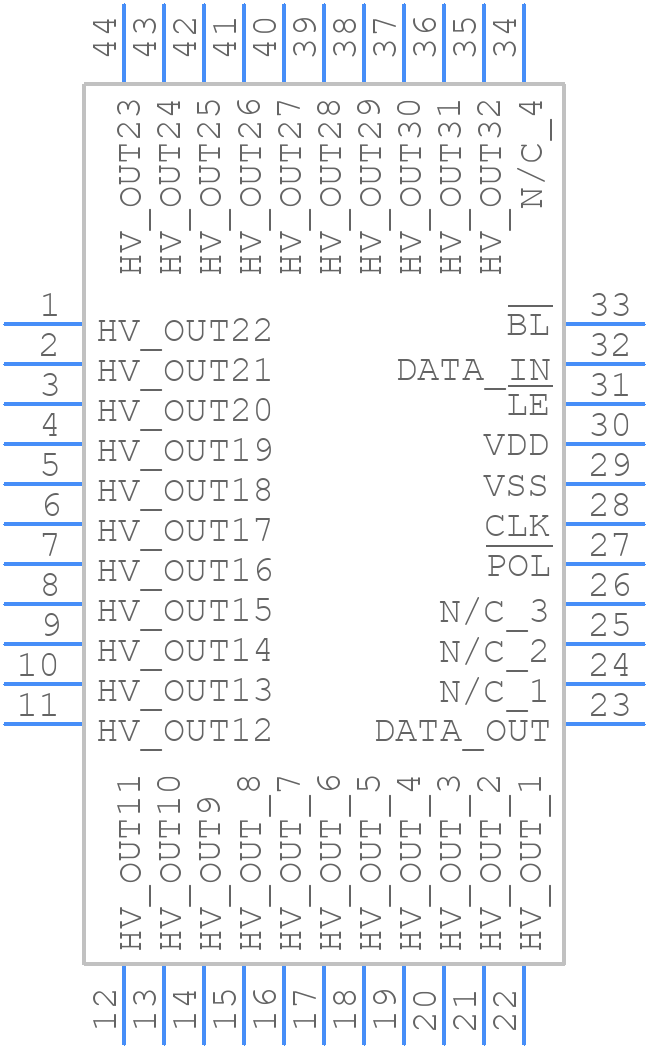

Use the download button to access the HV5622PG-G schematic symbol, PCB footprint, and 3D model.
