HV5623K7-G - Microchip

Description: Serial to Parallel Logic Converters 32CH SERIAL/PARALLEL CONVERTER

Download HV5623K7-G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

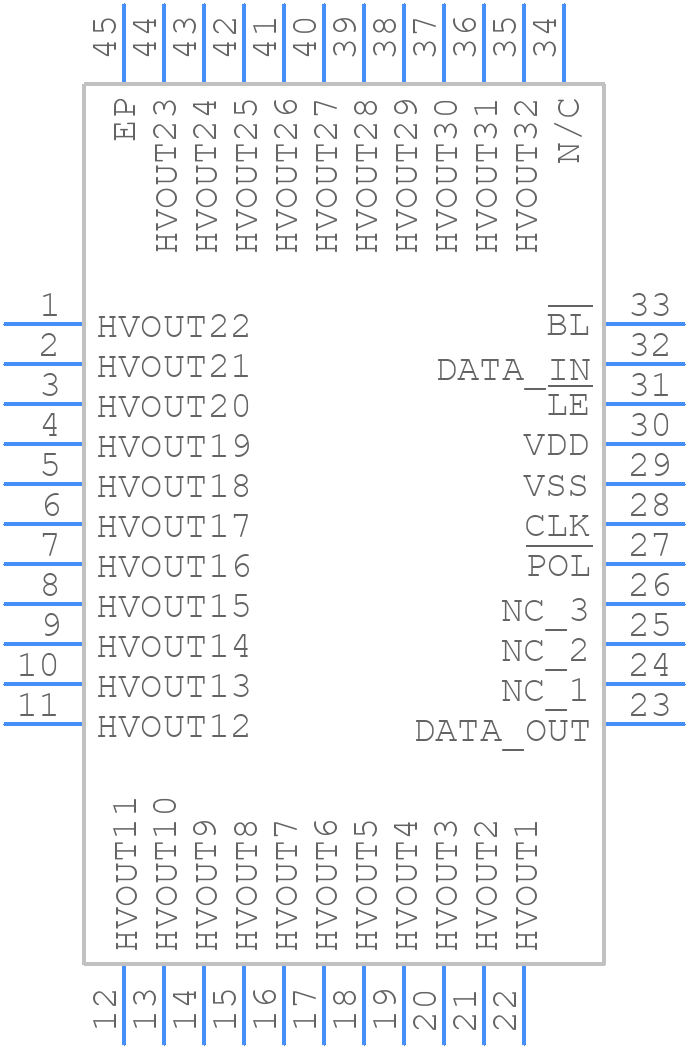

HV5623K7-G - Microchip - PCB symbol
click to zoom
PCB Footprints
HV5623K7-G - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HV5623K7-G
click to zoom
3D Models
HV5623K7-G - Microchip - 3D model - Quad Flat No-Lead - HV5623K7-G
click to zoom

HV5623K7-G Details

  • Manufacturer Part Number:

    HV5623K7-G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Pin Count:

    44

  • Manufacturer Package Code:

    WQFN-44

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    0

  • Data Input Mode:

    SERIAL

  • Interface IC Type:

    EL DISPLAY DRIVER

  • JESD-30 Code:

    S-XQCC-N44

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    32

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Polarity:

    TRUE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC44,.28SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    25 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • fmax-Min:

    16 MHz

HV5623K7-G Frequently Asked Questions (FAQs)

  • A good PCB layout for the HV5623K7-G involves keeping the high-voltage traces short and away from sensitive analog circuits, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure reliable communication, use a reliable communication protocol such as SPI or I2C, and ensure that the clock frequency is within the recommended range. Also, use a pull-up resistor on the data line and a series resistor on the clock line to prevent signal reflections.
  • The maximum voltage that can be applied to the HV5623K7-G's output pins is 560V. Exceeding this voltage can damage the device.
  • To protect the HV5623K7-G from overvoltage and overcurrent conditions, use a voltage regulator to regulate the input voltage, and add overcurrent protection devices such as fuses or current-limiting resistors.
  • The recommended operating temperature range for the HV5623K7-G is -40°C to 125°C. Operating the device outside this range can affect its performance and reliability.
