HV56264T-E/QEX-VAO - Microchip

Description: 4-CH HV AMP 250V TSSOP

Download HV56264T-E/QEX-VAO Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

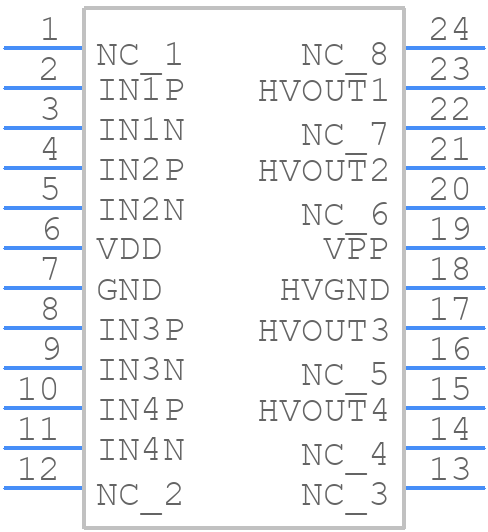

Symbol
HV56264T-E/QEX-VAO - Microchip - PCB symbol
click to zoom
PCB Footprints
HV56264T-E/QEX-VAO - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - HV56264T-E/QEX-VAO
click to zoom
3D Models
HV56264T-E/QEX-VAO - Microchip - 3D model - Small Outline Packages - HV56264T-E/QEX-VAO
click to zoom

HV56264T-E/QEX-VAO Details

  • Manufacturer Part Number:

    HV56264T-E/QEX-VAO

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    TSSOP-24

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Frequency Compensation:

    YES

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    7.8 mm

  • Micropower:

    NO

  • Number of Functions:

    4

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Power:

    NO

  • Programmable Power:

    NO

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Slew Rate-Min:

    4 V/us

  • Slew Rate-Nom:

    11 V/us

  • Supply Current-Max:

    8.3 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Voltage Gain-Min:

    50

  • Wideband:

    NO

  • Width:

    4.4 mm

HV56264T-E/QEX-VAO Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the HV56264T-E/QEX-VAO evaluation board user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The HV56264T-E/QEX-VAO has a thermal pad that must be connected to a thermal plane on the PCB to dissipate heat. A heat sink or thermal interface material can be used to improve thermal conductivity. Additionally, ensure good airflow around the device and avoid blocking the thermal pad with components or soldermask.
  • The HV56264T-E/QEX-VAO has an operating temperature range of -40°C to +125°C, but the maximum junction temperature (TJ) should not exceed 150°C. Ensure that the device is operated within the recommended temperature range to prevent damage or malfunction.
  • The HV56264T-E/QEX-VAO can be programmed using the SPI interface. Microchip provides a software development kit (SDK) and example code to help users program the device's internal registers and configure its operation.
  • The recommended power-up sequence for the HV56264T-E/QEX-VAO is to apply the VDD supply voltage first, followed by the VPP supply voltage. Ensure that the VDD voltage is stable before applying the VPP voltage to prevent damage or malfunction.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HV56264T-E/QEX-VAO Overview

Use the download button to access the HV56264T-E/QEX-VAO schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HV562, or try a keyword search, such as Operational Amplifiers
