1.565 X 0.580 INCH, 0.250 INCH HEIGHT, 0.100 INCH PITCH, GREEN, PLASTIC, MS-011AB, DIP-28
Pin Count:
28
Manufacturer Package Code:
PDIP-28
Country Of Origin:
Thailand
ECCN Code:
EAR99
HTS Code:
8541.29.00.95
Factory Lead Time:
6 Weeks
Manufacturer:
Microchip Technology Inc
YTEOL:
8
Data Input Mode:
SERIAL
Interface IC Type:
VACUUM FLUORESCENT DISPLAY DRIVER
JESD-30 Code:
R-PDIP-T28
JESD-609 Code:
e3
Length:
37.4 mm
Multiplexed Display Capability:
NO
Number of Functions:
1
Number of Segments:
20
Number of Terminals:
28
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Polarity:
TRUE
Package Body Material:
PLASTIC/EPOXY
Package Code:
DIP
Package Equivalence Code:
DIP28,.6
Package Shape:
RECTANGULAR
Package Style:
IN-LINE
Qualification Status:
Not Qualified
Screening Level:
TS 16949
Seated Height-Max:
6.35 mm
Supply Voltage-Max:
5.5 V
Supply Voltage-Min:
4.5 V
Supply Voltage-Nom:
5 V
Supply Voltage1-Max:
80 V
Supply Voltage1-Min:
20 V
Surface Mount:
NO
Technology:
CMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Width:
15.24 mm
HV5812P-G Frequently Asked Questions (FAQs)
Microchip provides a recommended PCB layout in the HV5812P-G evaluation board user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
To ensure reliable operation in high-temperature environments, it is essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow around the device. Additionally, the HV5812P-G has a built-in thermal shutdown feature that can be used to prevent damage from overheating.
When selecting external components for the HV5812P-G, key considerations include the voltage rating, current handling, and power dissipation of the components. It is also essential to ensure that the components are compatible with the HV5812P-G's operating frequency and can handle the high-voltage switching transients. Microchip provides guidance on component selection in the HV5812P-G datasheet and application notes.
To troubleshoot common issues with the HV5812P-G, it is essential to follow a systematic approach, including checking the power supply, output voltage, and current, as well as verifying the correctness of the PCB layout and component selection. Microchip provides troubleshooting guidelines and application notes that can help identify and resolve common issues.
When working with the HV5812P-G, it is essential to take safety precautions to avoid electrical shock, injury, or damage to the device. This includes using proper safety equipment, such as safety glasses and insulated tools, and ensuring that the device is properly connected and configured to prevent accidental high-voltage discharge.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HV5812P-G Overview

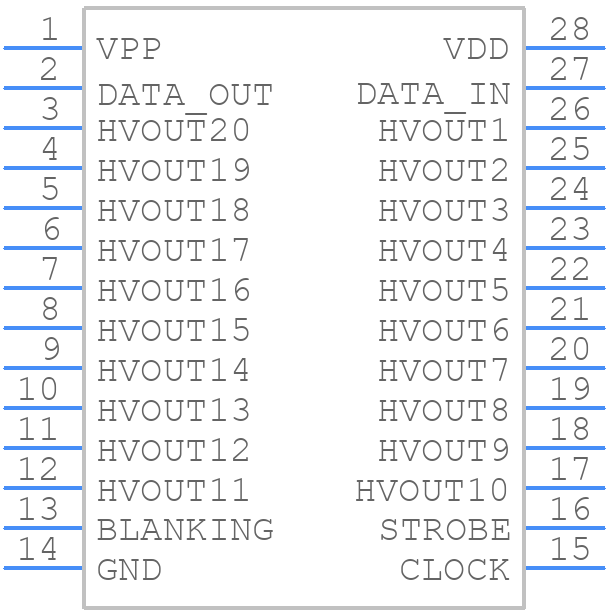

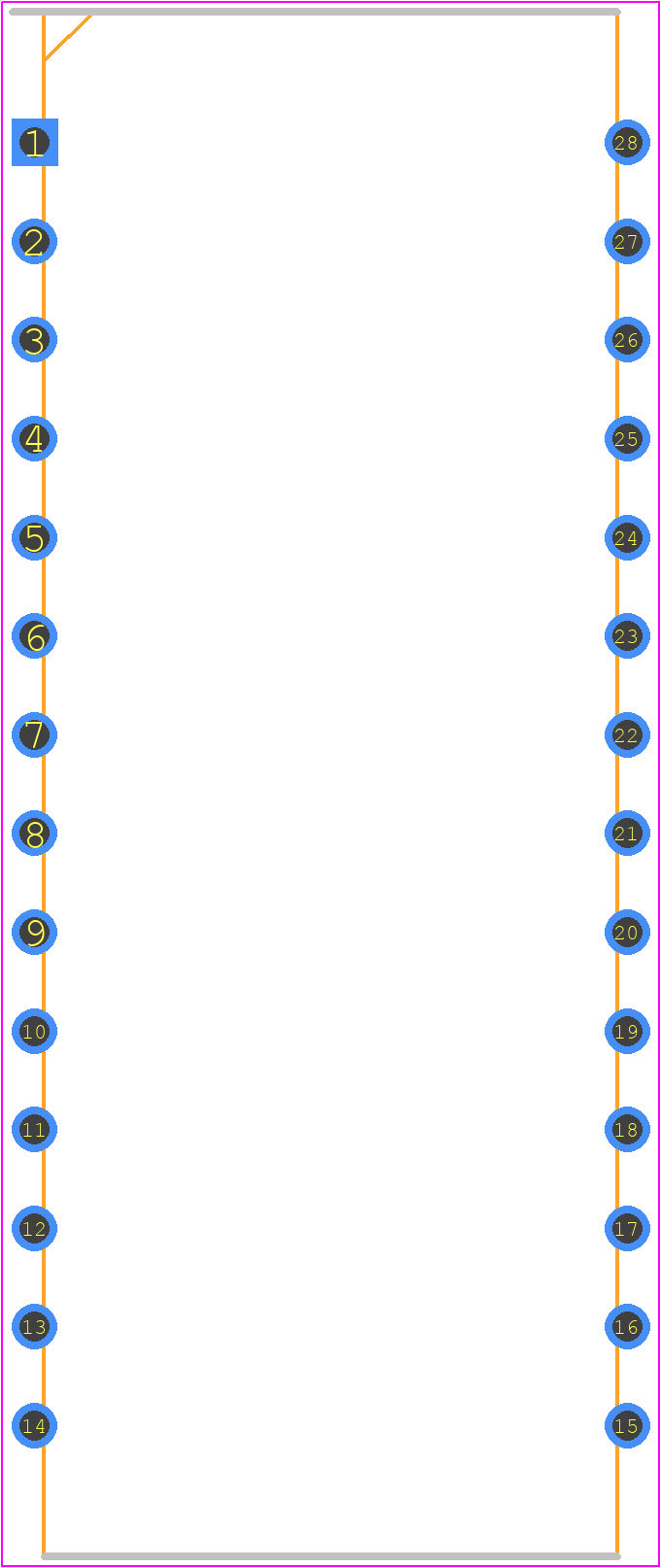

Use the download button to access the HV5812P-G schematic symbol, PCB footprint, and 3D model.
