A good PCB layout for the HV857LMG-G involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure reliable operation in high-temperature environments, ensure proper heat sinking, use a thermally conductive material for the PCB, and consider using a heat sink or thermal interface material. Also, follow the recommended operating temperature range and derate the device accordingly.
To ensure EMI and EMC compliance, use a shielded enclosure, keep the device away from antennas and other EMI-sensitive components, and use EMI filters or common-mode chokes on the input and output lines. Also, follow good PCB layout practices and use a Faraday cage or shielding around the device.
To troubleshoot issues with the HV857LMG-G, start by checking the input voltage, output load, and PCB layout. Verify that the device is properly soldered and that there are no signs of physical damage. Use an oscilloscope to check the output voltage and current waveforms, and consult the datasheet and application notes for guidance.
When using the HV857LMG-G in a high-reliability or safety-critical application, ensure that the device is properly derated, and follow the recommended operating conditions. Implement redundant systems, error detection, and correction mechanisms to mitigate potential failures. Also, consult with a qualified engineer or safety expert to ensure compliance with relevant standards and regulations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HV857LMG-G Overview

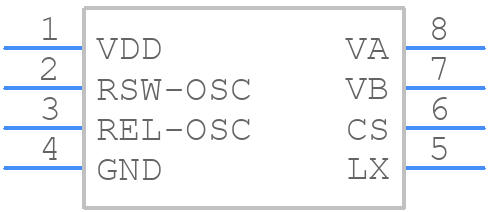

Use the download button to access the HV857LMG-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HV857,
or try a keyword search, such as Display Drivers
About Microchip
Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
