HV9408PJ-G - Microchip

Description: Counter Shift Registers 80V 32Ch Hi-V Out

Download HV9408PJ-G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

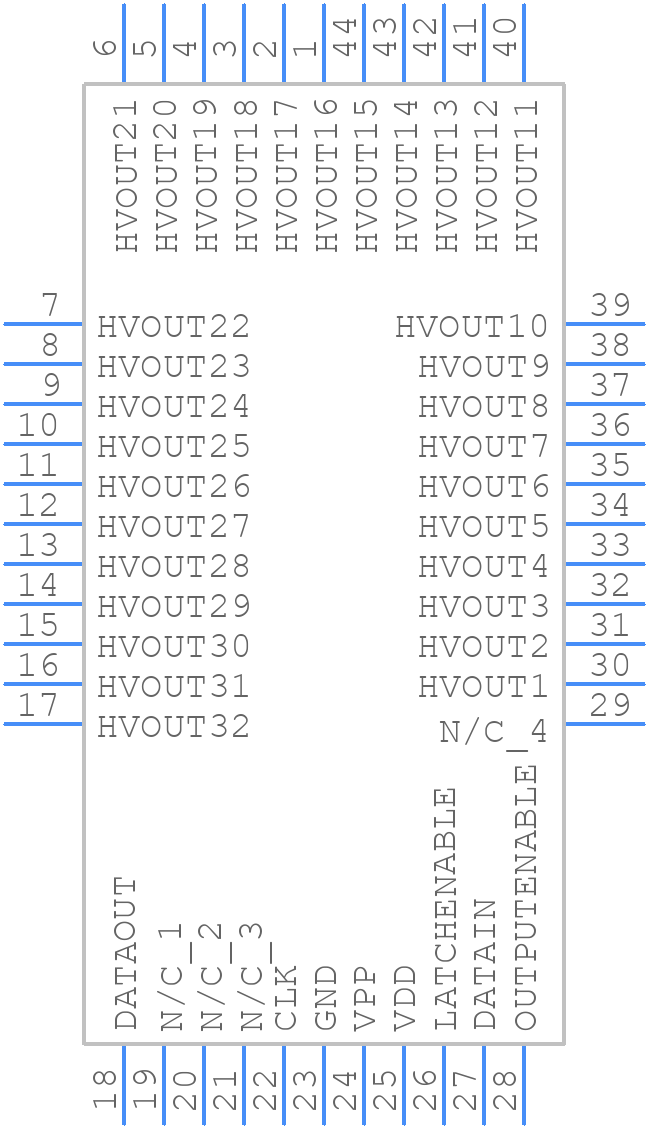

HV9408PJ-G - Microchip - PCB symbol
click to zoom
PCB Footprints
HV9408PJ-G - Microchip PCB footprint - Plastic Leaded Chip Carrier - Plastic Leaded Chip Carrier - 05JQ-BT
click to zoom

HV9408PJ-G Details

  • Manufacturer Part Number:

    HV9408PJ-G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LCC-44

  • Pin Count:

    44

  • Manufacturer Package Code:

    PLCC-44

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.29.00.95

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Interface IC Type:

    SIPO BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    S-PQCC-J44

  • JESD-609 Code:

    e3

  • Length:

    16.5862 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCJ

  • Package Equivalence Code:

    LDCC44,.7SQ

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.572 mm

  • Supply Current-Max:

    15 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    80 V

  • Supply Voltage1-Min:

    8 V

  • Supply Voltage1-Nom:

    60 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    J BEND

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    16.5862 mm

HV9408PJ-G Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the HV9408PJ-G evaluation board user's guide (DS50002734A). It's essential to follow this layout to minimize noise, ensure proper thermal management, and optimize performance.
  • The input capacitor values depend on the input voltage, output voltage, and desired output current. Microchip provides a capacitor selection guide in the HV9408PJ-G datasheet (DS20006114A). Use the provided equations and tables to determine the optimal capacitor values for your specific application.
  • The EN (enable) pin has a maximum allowed voltage of 6V. Exceeding this voltage can damage the device. Ensure that the voltage on the EN pin does not exceed 6V to prevent damage and ensure proper operation.
  • The HV9408PJ-G has built-in OVP and UVLO features. To implement these features, connect the OVP pin to a voltage divider that sets the desired overvoltage threshold. For UVLO, connect the UVLO pin to a voltage divider that sets the desired undervoltage threshold. Refer to the datasheet for specific implementation details.
  • The thermal derating curve for the HV9408PJ-G is provided in the datasheet (DS20006114A). The curve shows the maximum allowed output current vs. ambient temperature. Ensure that your design operates within the specified thermal derating curve to prevent overheating and ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HV9408PJ-G Overview

Use the download button to access the HV9408PJ-G schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like HV940, or try a keyword search, such as Peripheral Drivers

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
