HV9801ALG-G - Microchip

Description: LED Lighting Drivers LED DRIVER, SWITCH DIMMABLE

Download HV9801ALG-G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

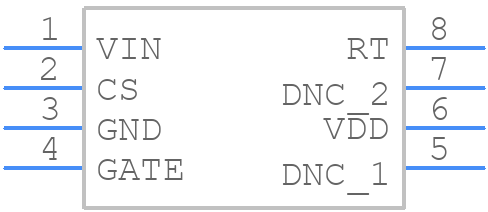

HV9801ALG-G - Microchip - PCB symbol
click to zoom
PCB Footprints
HV9801ALG-G - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-D+
click to zoom
3D Models
HV9801ALG-G - Microchip - 3D model - Small Outline Packages - SOIC-D+
click to zoom

HV9801ALG-G Details

  • Manufacturer Part Number:

    HV9801ALG-G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOIC-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.29.00.95

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    0.5 mA

  • Supply Voltage-Max:

    7.75 V

  • Supply Voltage-Min:

    7.25 V

  • Supply Voltage-Nom:

    7.5 V

  • Supply Voltage1-Max:

    450 V

  • Supply Voltage1-Min:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

HV9801ALG-G Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the HV9801ALG-G. Ensure a solid ground plane, keep the input and output traces short and separate, and use a common mode choke to reduce EMI. Refer to Microchip's application notes and layout guidelines for more information.
  • The input capacitor value depends on the input voltage, output voltage, and desired output current. A general rule of thumb is to use a capacitor with a value between 1uF to 10uF. Consult the datasheet and application notes for specific guidance.
  • The maximum output current is dependent on the input voltage, output voltage, and thermal considerations. Typically, the HV9801ALG-G can deliver up to 1A of output current. However, it's essential to check the datasheet and perform thermal calculations to ensure safe operation.
  • The HV9801ALG-G has built-in OVP and UVP features. To implement these features, connect the OVP and UVP pins to the desired voltage threshold using resistive dividers. Consult the datasheet and application notes for specific implementation details.
  • The EN pin is used to enable or disable the HV9801ALG-G. Connect the EN pin to a logic high (VCC) to enable the device, and connect it to a logic low (GND) to disable it. This pin can be used to implement power sequencing or to turn off the device during shutdown or low-power modes.
