HV9910BLG-G - Microchip

Description: LED Lighting Drivers UNIVRSL HI BRGHTNES LED DRIVER

Download HV9910BLG-G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

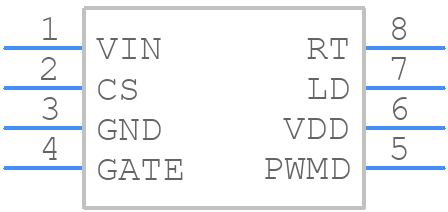

Symbol
HV9910BLG-G - Microchip - PCB symbol
click to zoom
PCB Footprints
HV9910BLG-G - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-D
click to zoom
3D Models
HV9910BLG-G - Microchip - 3D model - Small Outline Packages - SOIC-D
click to zoom

HV9910BLG-G Details

  • Manufacturer Part Number:

    HV9910BLG-G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOIC-8

  • Country Of Origin:

    Malaysia, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.29.00.95

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    450 V

  • Supply Voltage-Min:

    8 V

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

HV9910BLG-G Frequently Asked Questions (FAQs)

  • A good PCB layout for the HV9910BLG-G involves keeping the high-voltage traces short and away from sensitive analog signals, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and the EN pin to a logic-level signal (e.g., 3.3V or 5V) to enable the device. The VREF pin should be connected to a stable 2.5V reference voltage. Additionally, ensure that the input and output capacitors are properly sized and placed close to the device.
  • The maximum allowable voltage on the HV pin is 700V. To protect the device from overvoltage, use a voltage limiter or a zener diode in series with a current-limiting resistor to clamp the voltage to a safe level. Additionally, ensure that the input and output capacitors are rated for the maximum expected voltage.
  • To troubleshoot issues with the HV9910BLG-G, start by verifying the PCB layout and ensuring that the device is properly biased. Check for oscillations or instability by monitoring the output voltage and current with an oscilloscope. Verify that the input and output capacitors are properly sized and placed close to the device. If issues persist, consult the datasheet and application notes for guidance.
  • Yes, the HV9910BLG-G is suitable for high-reliability and automotive applications. It is AEC-Q100 qualified and meets the requirements for automotive and industrial applications. However, ensure that the device is properly derated for the specific application, and follow the recommended PCB layout and thermal management guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HV9910BLG-G Overview

Use the download button to access the HV9910BLG-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HV991, or try a keyword search, such as Display Drivers

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
