HV9910CNG-G - Microchip

Description: LED Lighting Driver ICs High Brightness LED Driver IC

Download HV9910CNG-G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

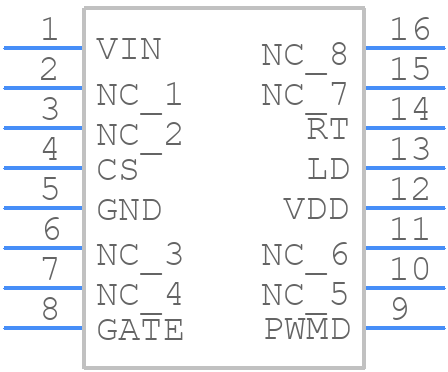

HV9910CNG-G - Microchip - PCB symbol
click to zoom
PCB Footprints
HV9910CNG-G - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 16-Lead Plastic Small Outline (SL) - Narrow, 3.90 mm Body [SOIC]
click to zoom
3D Models
HV9910CNG-G - Microchip - 3D model - Small Outline Packages - 16-Lead Plastic Small Outline (SL) - Narrow, 3.90 mm Body [SOIC]
click to zoom

HV9910CNG-G Details

  • Manufacturer Part Number:

    HV9910CNG-G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    16

  • Manufacturer Package Code:

    SOIC-16

  • Country Of Origin:

    Malaysia, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.29.00.95

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    1.5 mA

  • Supply Voltage-Max:

    450 V

  • Supply Voltage-Min:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3.9 mm

HV9910CNG-G Frequently Asked Questions (FAQs)

  • A good PCB layout for the HV9910CNG-G involves keeping the high-voltage traces short and away from sensitive analog signals, using a solid ground plane, and placing the input and output capacitors close to the IC. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure proper thermal management, make sure to provide adequate heat sinking, such as a heat sink or a metal core PCB, and ensure good airflow around the device. The thermal pad on the bottom of the package should be connected to a solid ground plane to help dissipate heat.
  • The recommended input voltage range for the HV9910CNG-G is 12V to 420V, with a maximum input voltage of 450V. Operating the device outside of this range may affect its performance and reliability.
  • To protect the HV9910CNG-G from overvoltage and overcurrent conditions, use a voltage regulator or a voltage limiter to limit the input voltage, and consider adding overcurrent protection devices such as fuses or current limiters.
  • The maximum output current capability of the HV9910CNG-G is 700mA, but this can be limited by the external components and the thermal management of the system.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HV9910CNG-G Overview

Use the download button to access the HV9910CNG-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HV991, or try a keyword search, such as Display Drivers
