HV9911NG-G-M901 - Microchip

Description: LED Lighting Drivers LED DRIVER

Download HV9911NG-G-M901 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

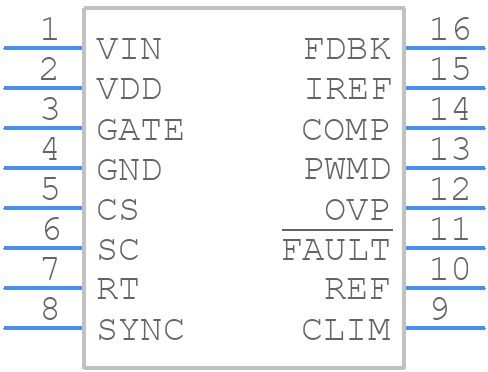

HV9911NG-G-M901 - Microchip - PCB symbol
click to zoom
PCB Footprints
HV9911NG-G-M901 - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 16-Lead SOIC (Narrow Body) Package Outline (NG)
click to zoom
3D Models
HV9911NG-G-M901 - Microchip - 3D model - Small Outline Packages - 16-Lead SOIC (Narrow Body) Package Outline (NG)
click to zoom

HV9911NG-G-M901 Details

  • Manufacturer Part Number:

    HV9911NG-G-M901

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    SOIC-16

  • Country Of Origin:

    Malaysia, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.29.00.95

  • Date Of Intro:

    2017-02-21

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    250 V

  • Supply Voltage-Min:

    9 V

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

HV9911NG-G-M901 Frequently Asked Questions (FAQs)

  • A good PCB layout for the HV9911NG-G-M901 involves keeping the high-voltage traces short and away from sensitive analog circuits. It's also recommended to use a solid ground plane and to decouple the power supply lines with capacitors.
  • To ensure reliability in high-temperature applications, it's essential to follow proper thermal design guidelines, such as providing adequate heat sinking and airflow, and derating the device's power handling according to the temperature derating curve provided in the datasheet.
  • When using the HV9911NG-G-M901, it's crucial to implement proper EMI filtering to minimize electromagnetic interference. This can be achieved by using a combination of common-mode chokes, differential-mode chokes, and capacitors to filter out high-frequency noise.
  • To troubleshoot issues with the HV9911NG-G-M901, start by verifying the power supply voltage, checking for proper PCB layout and component selection, and ensuring that the device is operated within its recommended specifications. Use oscilloscopes and other diagnostic tools to identify the root cause of the issue.
  • In high-humidity environments, the HV9911NG-G-M901 may be susceptible to moisture-related issues, such as corrosion or electrical leakage. To mitigate these risks, consider using conformal coatings, hermetically sealed packages, or other environmental protection measures.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HV9911NG-G-M901 Overview

Use the download button to access the HV9911NG-G-M901 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HV991, or try a keyword search, such as Display Drivers

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
