HV9911NG-G - Microchip

Description: LED Lighting Drivers Hi-Current Sw Mode

Download HV9911NG-G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

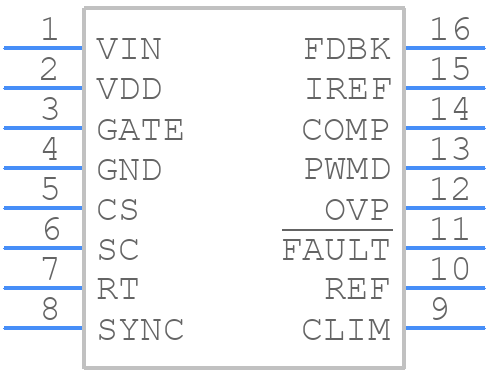

HV9911NG-G - Microchip - PCB symbol
click to zoom
PCB Footprints
HV9911NG-G - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 16-Lead SOIC (Narrow Body) Package Outline (NG)
click to zoom
3D Models
HV9911NG-G - Microchip - 3D model - Small Outline Packages - 16-Lead SOIC (Narrow Body) Package Outline (NG)
click to zoom

HV9911NG-G Details

  • Manufacturer Part Number:

    HV9911NG-G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    SOIC-16

  • Country Of Origin:

    Malaysia, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.29.00.95

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    250 V

  • Supply Voltage-Min:

    9 V

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3.9 mm

HV9911NG-G Frequently Asked Questions (FAQs)

  • A good PCB layout for the HV9911NG-G involves keeping the high-voltage nodes (VIN, VOUT) away from the low-voltage nodes (VCC, GND) to minimize noise coupling. It's also recommended to use a solid ground plane and to keep the input and output capacitors close to the IC.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the output capacitor is properly sized and that the feedback network is correctly configured. It's also important to decouple the VCC pin with a 10uF capacitor.
  • The HV9911NG-G can deliver up to 1.2A of output current, but this is dependent on the input voltage, output voltage, and thermal conditions. It's recommended to check the thermal derating curves in the datasheet to ensure the device can handle the required output current.
  • The HV9911NG-G has built-in overvoltage protection (OVP) and undervoltage lockout (UVLO) features. However, it's still recommended to add external protection circuitry, such as a voltage supervisor or a crowbar circuit, to ensure the device is protected from extreme voltage conditions.
  • The HV9911NG-G is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. It's recommended to follow the thermal derating curves in the datasheet and to ensure proper heat sinking and airflow to keep the device within its recommended operating temperature range.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HV9911NG-G Overview

Use the download button to access the HV9911NG-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HV991, or try a keyword search, such as Display Drivers

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
