HVLED101TR - STMicroelectronics

Description: Advanced high power factor flyback controller with valley locking and maximum power control

Download HVLED101TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

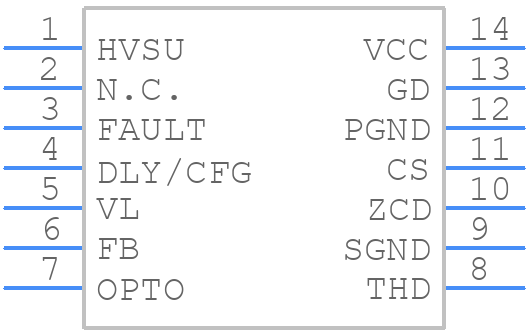

HVLED101TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
HVLED101TR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO14
click to zoom
3D Models
HVLED101TR - STMicroelectronics - 3D model - Small Outline Packages - SO14
click to zoom

HVLED101TR Details

  • Manufacturer Part Number:

    HVLED101TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-14

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    RESONANT CONTROL

  • Input Voltage-Max:

    20 V

  • Input Voltage-Min:

    8.2 V

  • Input Voltage-Nom:

    16 V

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    8.65 mm

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    6 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    35 kHz

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3.9 mm

HVLED101TR Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a compact layout with short traces, and a solid ground plane to minimize EMI. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, a shielded cable or a coaxial cable should be used for the LED connection.
  • To ensure proper biasing, the HVLED101TR requires a high-voltage power supply (typically 100-200V) and a current-limiting resistor (Rset) connected between the VIN pin and the LED anode. The value of Rset depends on the LED current and voltage requirements. A recommended value is 1kΩ to 10kΩ.
  • The HVLED101TR can operate within a temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It is recommended to operate the device within a temperature range of 0°C to 85°C for optimal performance.
  • Yes, the HVLED101TR can be used with a dimmable LED driver. However, the driver must be capable of providing a high-voltage output (typically 100-200V) and a current-regulated output. The driver should also be able to handle the high-frequency switching of the HVLED101TR.
  • To protect the HVLED101TR from overvoltage and overcurrent conditions, it is recommended to use a voltage regulator or a voltage limiter to limit the input voltage to the recommended maximum value. Additionally, a current-limiting resistor (Rset) should be used to limit the LED current to the recommended maximum value.
