LEM Holdings SSA recommends a symmetrical PCB layout with a solid ground plane, and keeping the high-frequency signals away from the low-frequency signals. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is also recommended.
To ensure accurate current measurement, it's essential to follow the recommended PCB layout, use a low-impedance current path, and minimize the distance between the current conductor and the sensor. Additionally, calibrate the sensor according to the datasheet instructions.
The HXS20-NP can operate within a temperature range of -40°C to 125°C. However, the accuracy and linearity of the sensor may degrade at extreme temperatures. It's recommended to operate the sensor within the specified temperature range for optimal performance.
Yes, the HXS20-NP is designed to withstand high-vibration environments. However, it's essential to ensure that the sensor is properly mounted and secured to the PCB to prevent mechanical stress and damage.
To minimize EMI, use a shielded cable for the current conductor, keep the sensor away from high-frequency sources, and use a ferrite bead or common-mode choke to filter out high-frequency noise.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HXS20-NP Overview

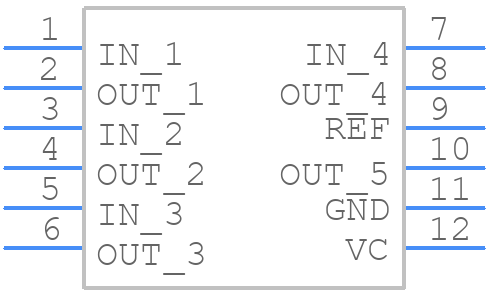

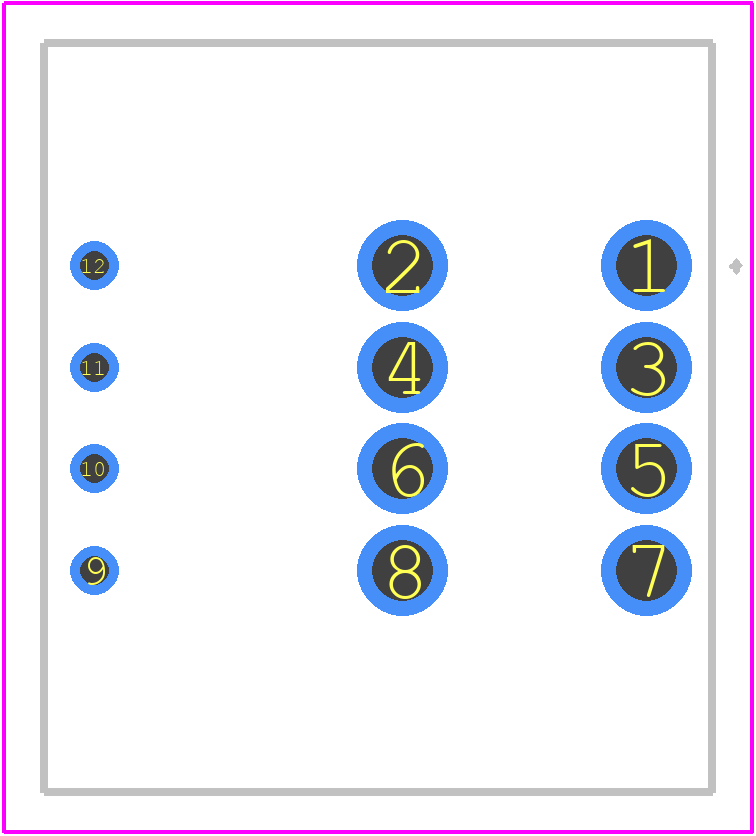

Use the download button to access the HXS20-NP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HXS20,
or try a keyword search, such as Other Sensors/Transducers
