The recommended PCB layout involves placing the IC near the center of the board, using a solid ground plane, and keeping the input and output traces short and separate. For thermal management, a heat sink or thermal pad is recommended, and the PCB should be designed to allow for good airflow.
To ensure reliable operation, it's essential to follow the recommended operating conditions, including voltage, current, and temperature. Additionally, the device should be soldered correctly, and the PCB should be designed to minimize thermal stress and moisture ingress.
The HY601742E has built-in ESD protection, but it's still important to follow standard ESD handling precautions, such as using an ESD wrist strap, mat, or workstation, and storing the devices in anti-static packaging.
While the HY601742E is a robust device, it's essential to evaluate its suitability for high-vibration or high-shock environments. The device should be properly secured to the PCB, and the PCB should be designed to withstand the expected mechanical stresses.
The recommended testing and validation procedures include functional testing, parametric testing, and environmental testing (e.g., temperature, humidity, vibration). It's also important to follow the manufacturer's recommended testing procedures and guidelines.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
HY601742E Overview

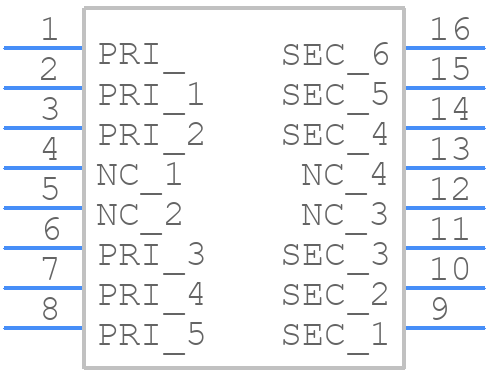

Use the download button to access the HY601742E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HY601,
or try a keyword search, such as Pulse/Datacom Transformers
