HY951180A - Hanrun Electronics

Description: Ethernet Connectors/Modular Connectors (RJ45 RJ11) Through Hole Rohs

Download HY951180A Model

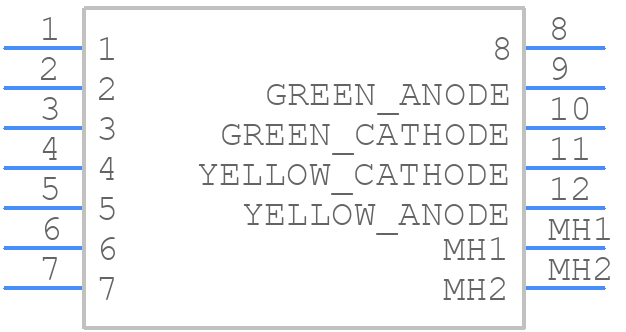

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

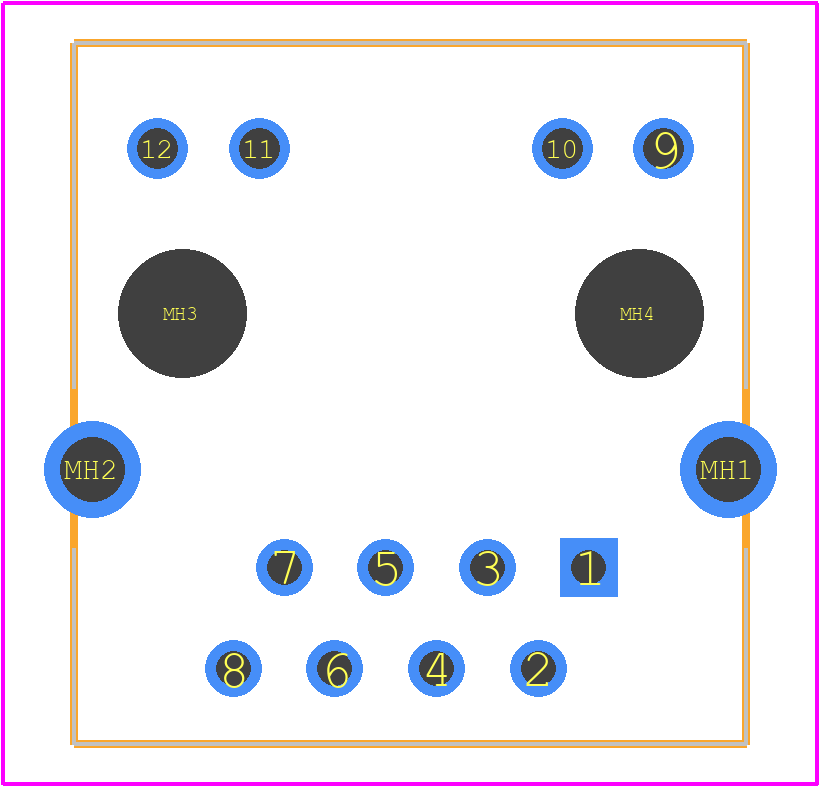

PCB Footprints
HY951180A - Hanrun Electronics PCB footprint - Other - Other - HY951180A-1
click to zoom
3D Models
HY951180A - Hanrun Electronics  - 3D model - Other - HY951180A-1
click to zoom

HY951180A Details

  • Manufacturer Part Number:

    HY951180A

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Hanrun Electronics Co Ltd

  • Additional Feature:

    EMI SHIELDED

  • Board Mounting Option:

    PEG

  • Body Breadth:

    0.689 inch

  • Body Depth:

    0.689 inch

  • Body Length:

    0.661 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    RJ CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    MAGNETIC RJ45

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    YES

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD AND PANEL

  • Number Of PCB Rows:

    2

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    2.54 mm

  • Polarization Key:

    POLARIZED HOUSING

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8
