Vicor recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to ensure optimal thermal performance.
To ensure reliable operation in high-vibration environments, Vicor recommends using a secure mounting method, such as screwing or clipping the module to the PCB, and ensuring that the PCB is properly secured to the chassis or enclosure.
The maximum allowed input voltage ripple for the I13TL1A0 is 10% of the nominal input voltage. Exceeding this limit may affect the module's performance and reliability.
Yes, the I13TL1A0 can be used in a redundant configuration to achieve high availability and fault tolerance. However, Vicor recommends consulting with their application engineers to ensure proper implementation.
Vicor recommends using a minimum of 10uF of input capacitance to ensure optimal performance and stability. However, the actual capacitance value may vary depending on the specific application and operating conditions.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
I13TL1A0 Overview

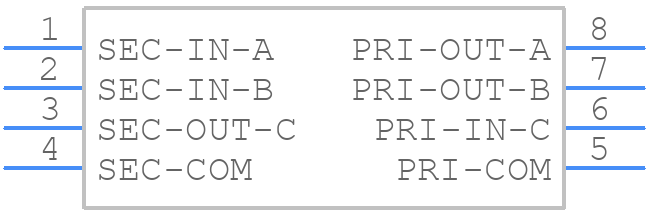

Use the download button to access the I13TL1A0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like I13TL,
