I2360SYI - Nuvoton

Description: Audio DSPs 60-sec 2.4-5.5V digital audio playback, multiple time programmable memory

Download I2360SYI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

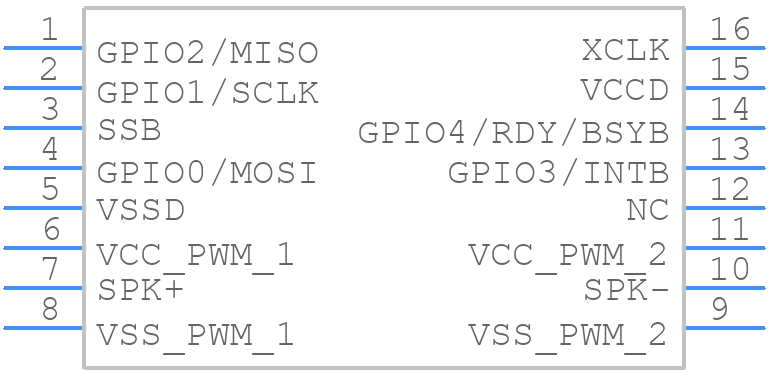

Symbol
I2360SYI - Nuvoton - PCB symbol
click to zoom
PCB Footprints
I2360SYI - Nuvoton PCB footprint - Small Outline Packages - Small Outline Packages - SOP 16-Lead Package
click to zoom
3D Models
I2360SYI - Nuvoton - 3D model - Small Outline Packages - SOP 16-Lead Package
click to zoom

I2360SYI Details

  • Manufacturer Part Number:

    I2360SYI

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Nuvoton Technology Corp

  • YTEOL:

    7

  • Consumer IC Type:

    SPEECH SYNTHESIZER

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

I2360SYI Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the I2360SYI is -40°C to 85°C, but it can tolerate up to 105°C for short periods.
  • To configure the I2360SYI for low-power mode, set the PMU (Power Management Unit) register to enable the low-power mode, and adjust the clock frequency and voltage regulator settings accordingly.
  • The maximum clock frequency supported by the I2360SYI is 72 MHz, but it can be adjusted to lower frequencies for power-saving purposes.
  • Yes, the I2360SYI can be used with an external crystal oscillator, but it requires a specific configuration and layout to ensure proper operation.
  • To implement secure boot on the I2360SYI, use the built-in ROM bootloader and configure the secure boot registers to enable authentication and encryption of the firmware.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

I2360SYI Overview

Use the download button to access the I2360SYI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like I2360, or try a keyword search, such as Audio Synthesizer ICs
