i6A24008A033V-N00-R - TDK Lambda

Description: DC-DC, PCB MOUNT, SIXTEENTH BRICK, INPUT 24VDC, OUTPUT -3.3 - -24V 8A, 75W, POS LOGIC - Bulk

Download i6A24008A033V-N00-R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

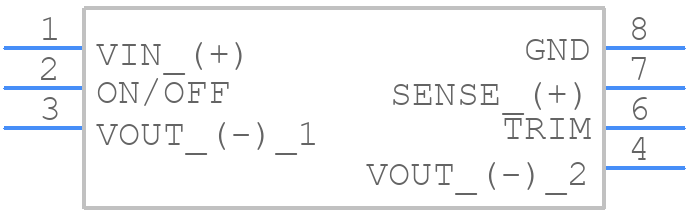

i6A24008A033V-N00-R - TDK Lambda - PCB symbol
click to zoom
PCB Footprints

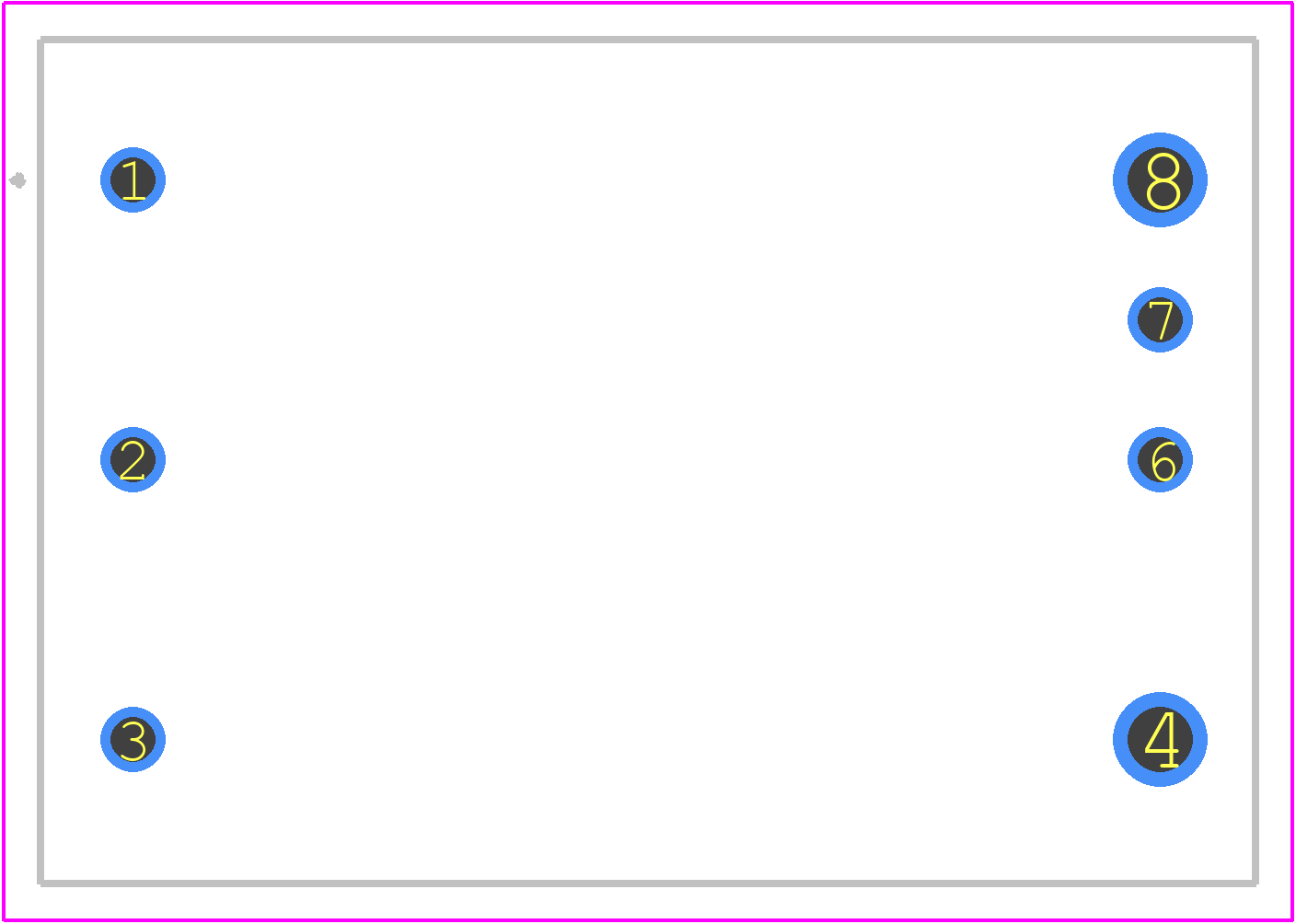

i6A24008A033V-N00-R - TDK Lambda PCB footprint - Other - Other - I6A24008A033V-N00-R-1
click to zoom
3D Models
i6A24008A033V-N00-R - TDK Lambda - 3D model - Other - I6A24008A033V-N00-R-1
click to zoom

i6A24008A033V-N00-R Details

  • Manufacturer Part Number:

    I6A24008A033V-N00-R

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    MODULE-8/7

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2018-07-03

  • Manufacturer:

    TDK-Lambda Corporation

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    9 V

  • JESD-30 Code:

    R-XDMA-P7

  • Length:

    33 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    -3.3 V

  • Output Voltage-Min:

    -30 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    12.1 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    75 W

  • Trim/Adjustable Output:

    YES

  • Width:

    22.9 mm
