i6A24008A033V-N01-R - TDK Lambda

Description: DC-DC Converters, On-board type, Output: 250W, wide range (-3.3 to -30V), Non-Isolated type

Download i6A24008A033V-N01-R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

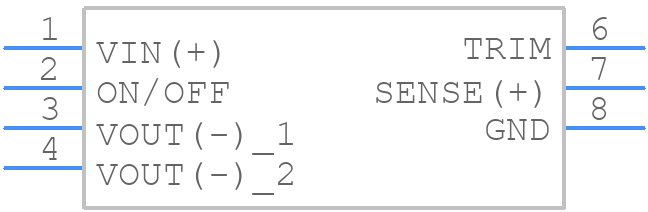

i6A24008A033V-N01-R - TDK Lambda - PCB symbol
click to zoom
PCB Footprints

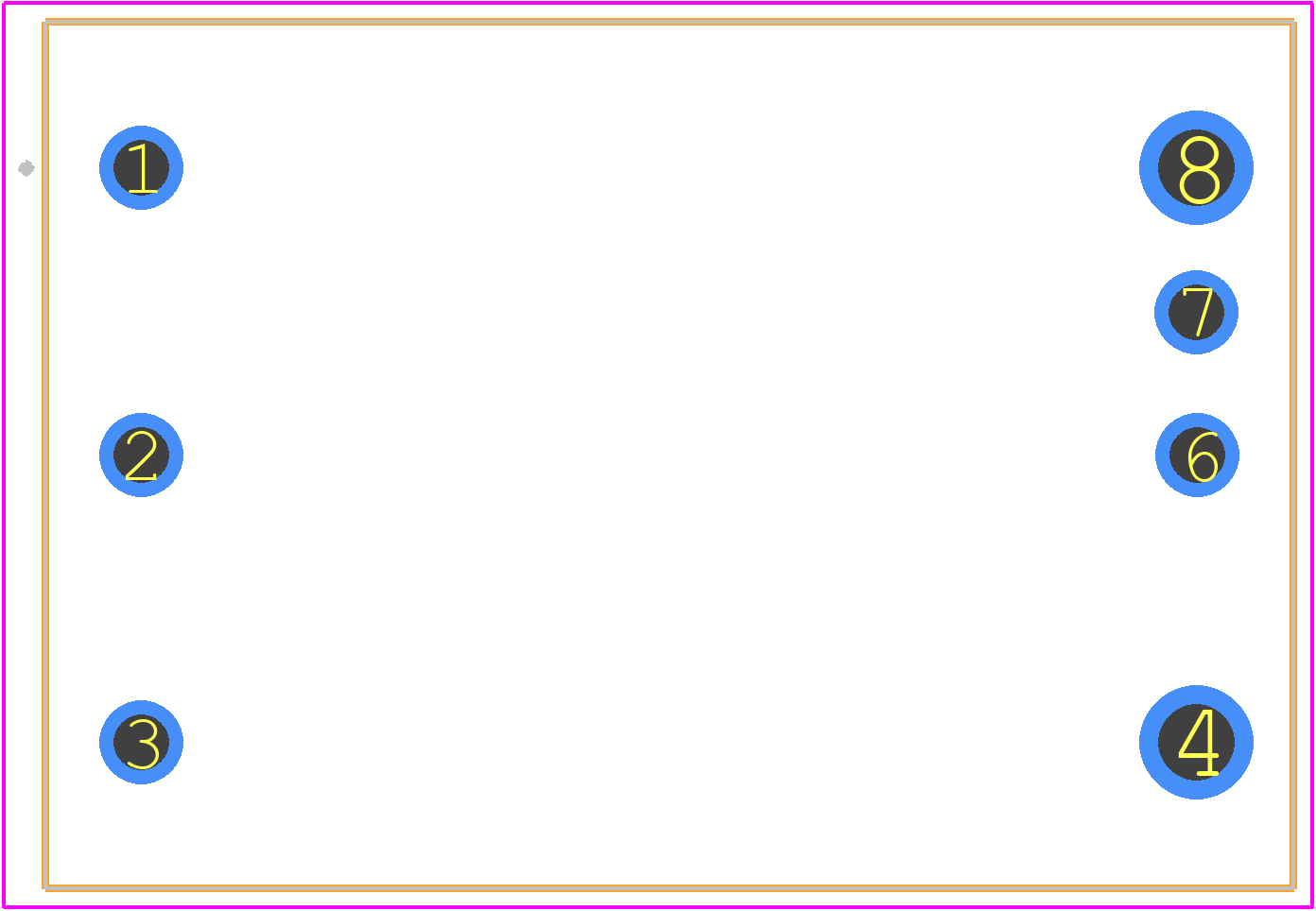

i6A24008A033V-N01-R - TDK Lambda PCB footprint - Other - Other - I6A24008A033V-N01-R-1
click to zoom
3D Models
i6A24008A033V-N01-R - TDK Lambda - 3D model - Other - I6A24008A033V-N01-R-1
click to zoom

i6A24008A033V-N01-R Details

  • Manufacturer Part Number:

    I6A24008A033V-N01-R

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2018-07-03

  • Manufacturer:

    TDK-Lambda Corporation

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

i6A24008A033V-N01-R Frequently Asked Questions (FAQs)

  • The I6A24008A033V-N01-R has an operating temperature range of -40°C to +85°C, with a derating of 2.5% per °C above 60°C.
  • The I6A24008A033V-N01-R requires a minimum airflow of 1m/s to ensure proper cooling. It is recommended to provide a clearance of at least 50mm around the module for airflow.
  • The recommended input voltage range for the I6A24008A033V-N01-R is 36V to 75V DC, with a nominal input voltage of 48V DC.
  • The I6A24008A033V-N01-R is designed to operate in a relative humidity range of 5% to 95% non-condensing. However, it is recommended to take precautions to prevent moisture ingress in high-humidity environments.
  • The MTBF rating for the I6A24008A033V-N01-R is approximately 1.5 million hours, calculated according to MIL-HDBK-217F.
