The recommended PCB layout for optimal thermal performance involves placing the DC-DC converter near a metal edge of the PCB, using a solid copper plane for heat dissipation, and keeping the surrounding area clear of components to ensure good airflow.
To ensure EMC, it is recommended to follow proper PCB design and layout guidelines, use a metal enclosure, and add EMI filters or shielding if necessary. Additionally, the module should be placed at least 10mm away from other components to minimize electromagnetic interference.
The maximum allowable capacitance for the output filter is 220uF. Exceeding this value may affect the stability of the output voltage.
Yes, the I6A24014A033V-000-R is designed to withstand vibrations up to 10G peak acceleration. However, it is recommended to follow proper mounting and screw torque guidelines to ensure reliable operation.
To troubleshoot output voltage deviations, check the input voltage, output load, and ambient temperature. Verify that the module is properly connected and that the output capacitor values are within the recommended range. If issues persist, consult the datasheet or contact TDK-Lambda Corporation's technical support.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
i6A24014A033V-000-R Overview

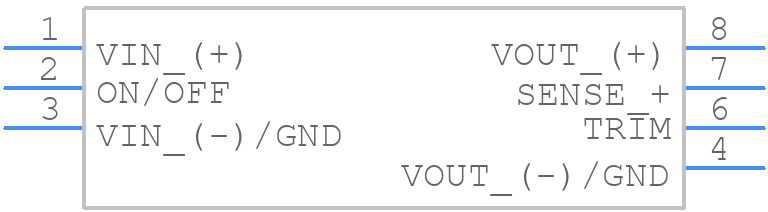

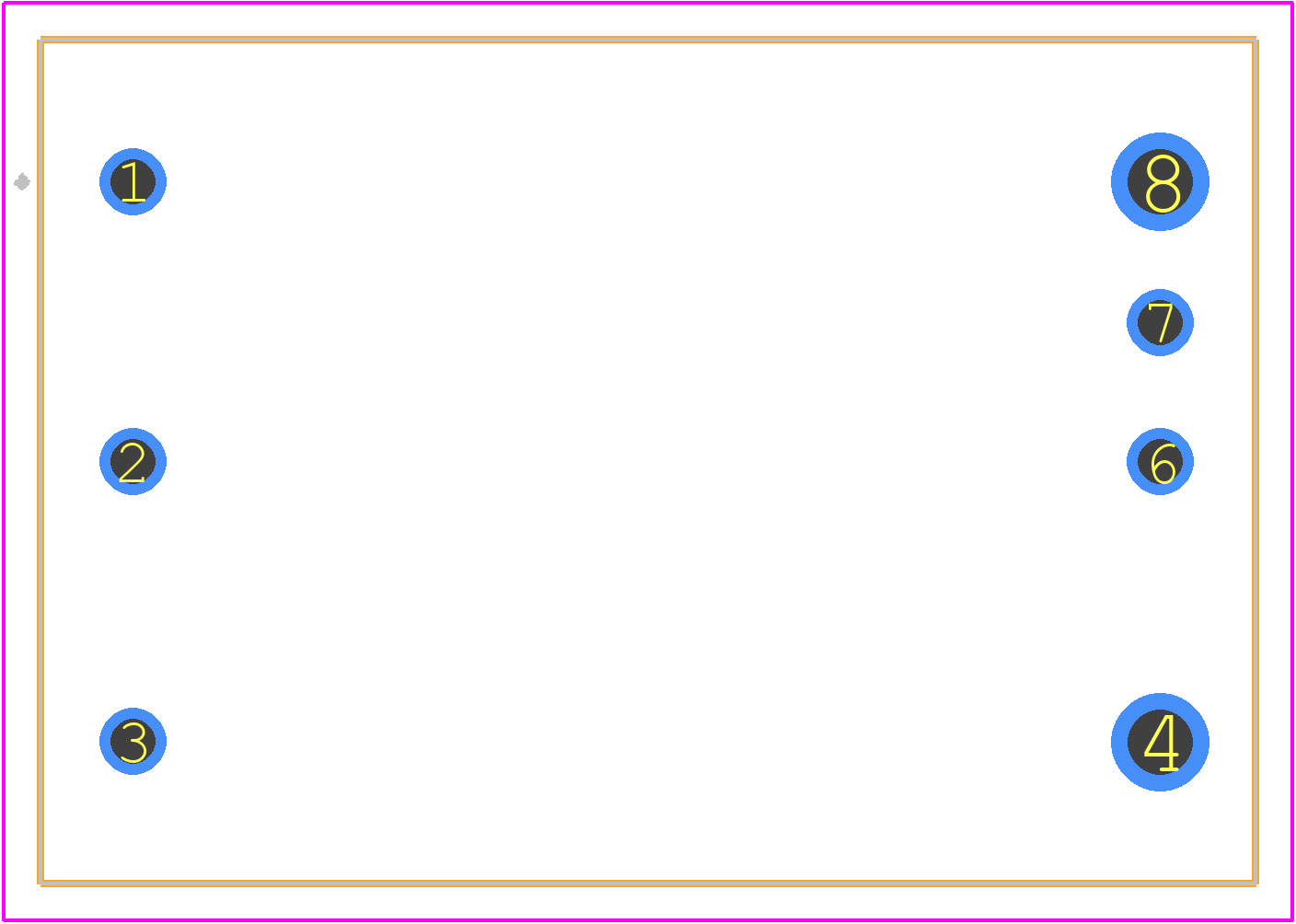

Use the download button to access the i6A24014A033V-000-R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like i6A24,
or try a keyword search, such as Power Supply Modules
