I6A24014A033V-002-R - TDK Lambda

Description: DC-DC Converters, On-board type, Output: 250W, wide range (3.3 to 24V), Non-Isolated type, Option: Positive logic ON/OFF control

Download I6A24014A033V-002-R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

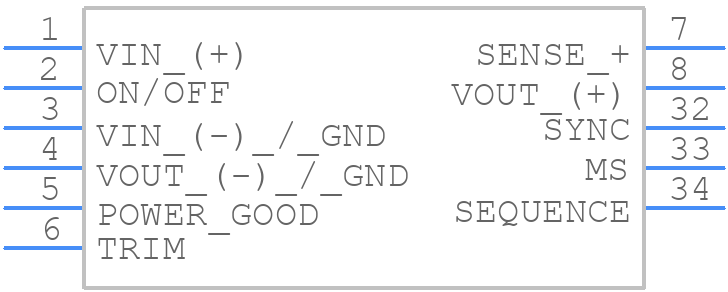

I6A24014A033V-002-R - TDK Lambda - PCB symbol
click to zoom
PCB Footprints

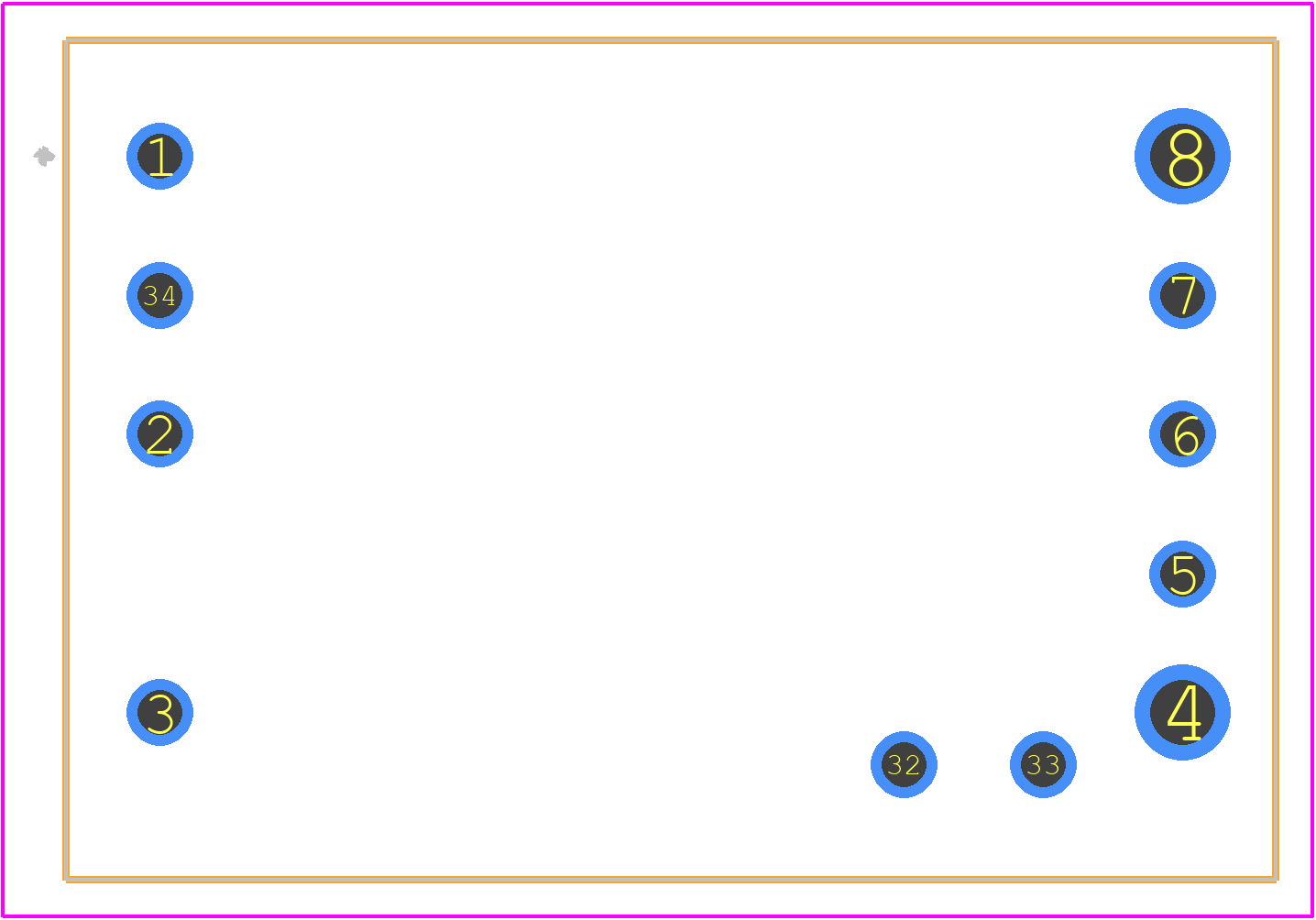

I6A24014A033V-002-R - TDK Lambda PCB footprint - Other - Other - I6A24014A033V-002-R-1
click to zoom
3D Models
I6A24014A033V-002-R - TDK Lambda - 3D model - Other - I6A24014A033V-002-R-1
click to zoom

I6A24014A033V-002-R Details

  • Manufacturer Part Number:

    I6A24014A033V-002-R

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2018-07-03

  • Manufacturer:

    TDK-Lambda Corporation

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

I6A24014A033V-002-R Frequently Asked Questions (FAQs)

  • The I6A24014A033V-002-R can operate from -20°C to +70°C, with derating above 50°C.
  • Yes, the I6A24014A033V-002-R is designed to withstand vibrations up to 10G peak acceleration, making it suitable for use in industrial and transportation applications.
  • Yes, the I6A24014A033V-002-R is certified for use in Class I, Division 2 hazardous locations, making it suitable for use in industrial environments with explosive atmospheres.
  • The MTBF rating for the I6A24014A033V-002-R is approximately 550,000 hours at 25°C, calculated according to MIL-HDBK-217F.
  • Yes, the I6A24014A033V-002-R can be paralleled with up to 4 units to increase output power, but it's recommended to consult with TDK-Lambda Corporation or a qualified engineer to ensure proper configuration and operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

I6A24014A033V-002-R Overview

Use the download button to access the I6A24014A033V-002-R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like I6A24, or try a keyword search, such as Power Supply Modules
