I6A24014A033V-003-R - TDK Lambda

Description: DC-DC Converters, On-board type, Output: 250W, wide range (3.3 to 24V), Non-Isolated type, Option: Negative logic ON/OFF control

Download I6A24014A033V-003-R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

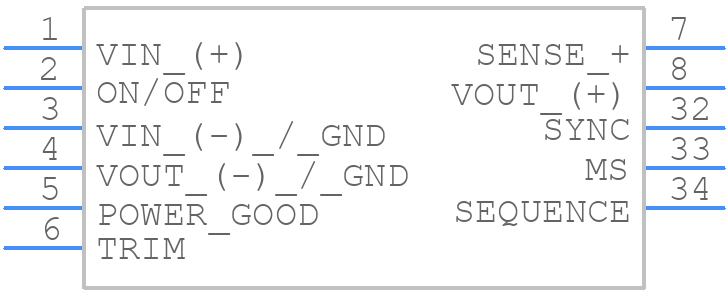

I6A24014A033V-003-R - TDK Lambda - PCB symbol
click to zoom
PCB Footprints

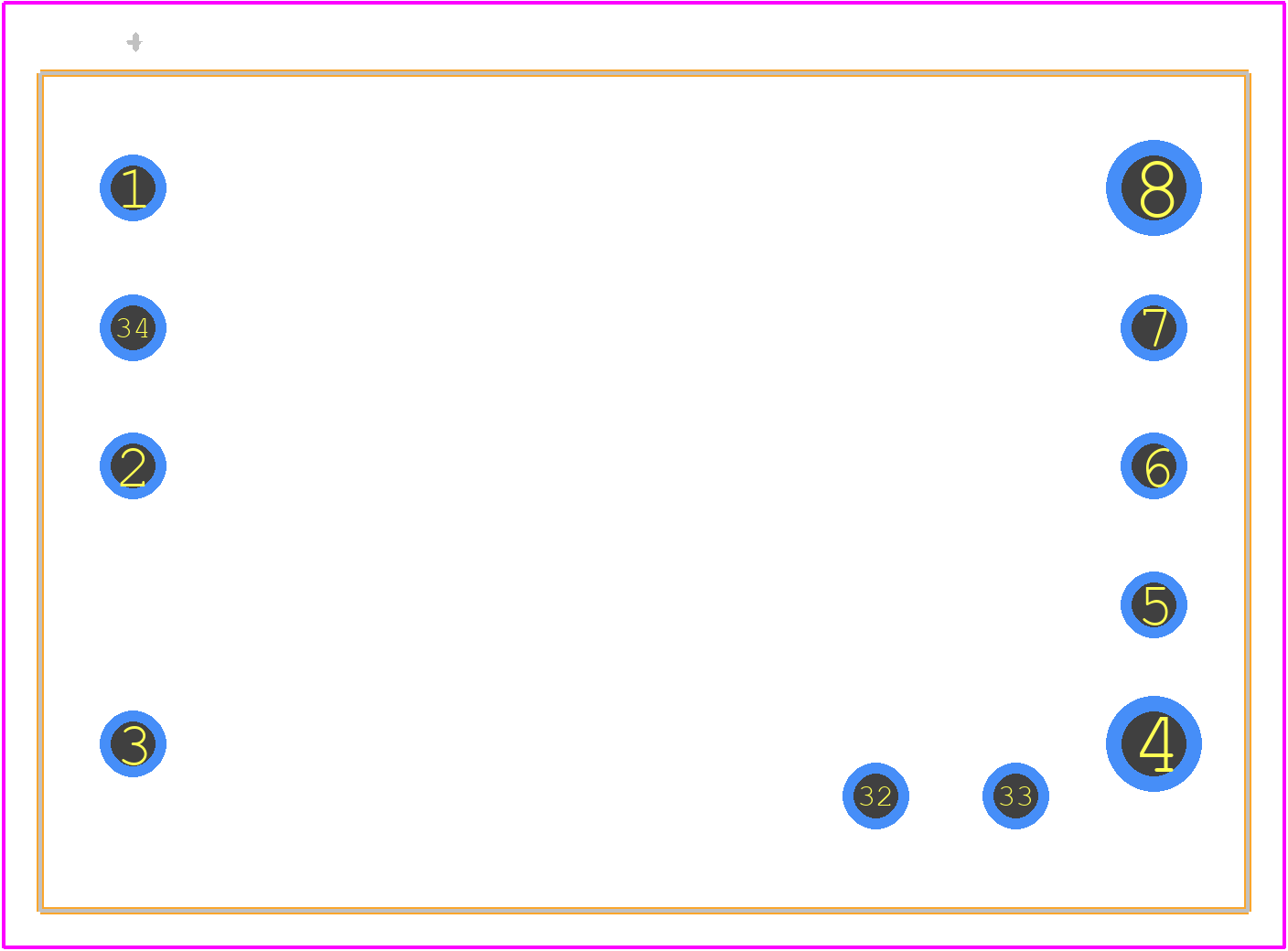

I6A24014A033V-003-R - TDK Lambda PCB footprint - Other - Other - I6A24014A033V-003-R-1
click to zoom
3D Models
I6A24014A033V-003-R - TDK Lambda - 3D model - Other - I6A24014A033V-003-R-1
click to zoom

I6A24014A033V-003-R Details

  • Manufacturer Part Number:

    I6A24014A033V-003-R

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2018-07-03

  • Manufacturer:

    TDK-Lambda Corporation

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

I6A24014A033V-003-R Frequently Asked Questions (FAQs)

  • The I6A24014A033V-003-R can operate in temperatures ranging from -40°C to 85°C, with derating above 70°C.
  • To ensure EMC, follow proper PCB layout and grounding practices, and consider adding external EMI filters or shielding if necessary. Consult the datasheet and application notes for more information.
  • The recommended input voltage range for the I6A24014A033V-003-R is 36-75 VDC, with a nominal input voltage of 48 VDC.
  • Yes, the I6A24014A033V-003-R is designed to operate in humid environments, but it's essential to follow proper conformal coating and sealing practices to ensure reliability.
  • The I6A24014A033V-003-R has a typical efficiency of 92% at full load, making it a highly efficient power supply solution.
