i7C4W008A120V-0C1-R - TDK Lambda

Description: DC-DC Converters, PCB mount type, Output: 300W, wide range (9.6 to 48V), Non-Isolated Step-up/Step-down

Download i7C4W008A120V-0C1-R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

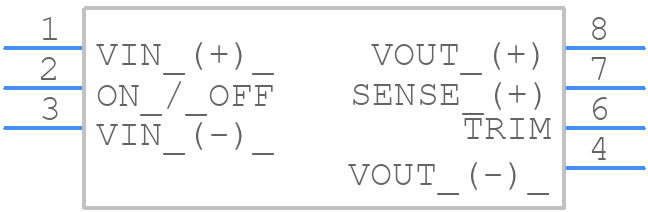

i7C4W008A120V-0C1-R - TDK Lambda - PCB symbol
click to zoom
PCB Footprints

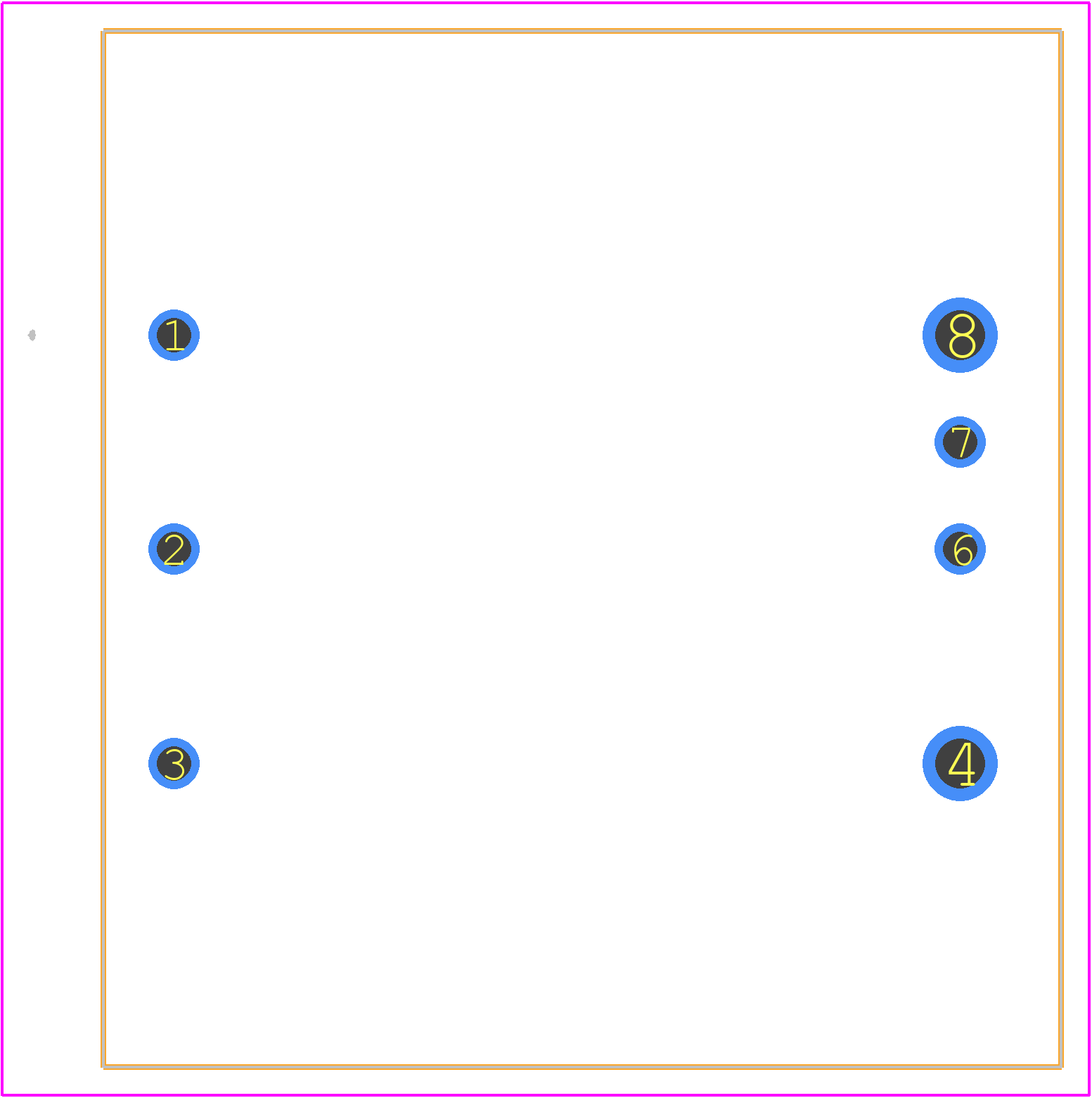

i7C4W008A120V-0C1-R - TDK Lambda PCB footprint - Other - Other - I7C4W008A120V-0C1-R-1
click to zoom
3D Models
i7C4W008A120V-0C1-R - TDK Lambda - 3D model - Other - I7C4W008A120V-0C1-R-1
click to zoom

i7C4W008A120V-0C1-R Details

  • Manufacturer Part Number:

    I7C4W008A120V-0C1-R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2020-05-21

  • Manufacturer:

    TDK-Lambda Corporation

i7C4W008A120V-0C1-R Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the I7C4W008A120V-0C1-R is -40°C to +85°C, with a derating of 2.5% per °C above 60°C.
  • The I7C4W008A120V-0C1-R requires a minimum airflow of 1m/s to ensure proper cooling. It is recommended to mount the module vertically and ensure a clearance of at least 50mm around the module for airflow.
  • The I7C4W008A120V-0C1-R can tolerate an input voltage deviation of ±10% of the nominal input voltage.
  • The I7C4W008A120V-0C1-R has built-in overvoltage protection (OVP) and undervoltage protection (UVP) circuits. However, it is recommended to add external protection devices, such as fuses and surge protectors, to ensure the module is protected from extreme voltage fluctuations.
  • The typical efficiency of the I7C4W008A120V-0C1-R is around 84% at full load, with a minimum efficiency of 80% at low loads.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

i7C4W008A120V-0C1-R Overview

Use the download button to access the i7C4W008A120V-0C1-R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like i7C4W, or try a keyword search, such as Power Supply Modules
