The recommended PCB layout involves placing the DC-DC converter near the power source, using a solid ground plane, and keeping the input and output capacitors close to the converter. For thermal management, ensure good airflow, use a heat sink if necessary, and follow the recommended thermal derating guidelines.
To ensure EMC, follow the recommended layout and grounding guidelines, use a metal enclosure, and add EMI filters or shielding if necessary. Also, ensure that the converter is operated within the specified temperature range and input voltage range.
When using the I7C4W012A050V-001-R in a hazardous location, ensure that it is installed and operated in accordance with the relevant safety standards and regulations, such as ATEX or UL. Also, follow the manufacturer's guidelines for installation, operation, and maintenance.
Yes, the I7C4W012A050V-001-R is designed for high-reliability applications. However, it's essential to follow the recommended derating guidelines, ensure proper thermal management, and implement redundant or fault-tolerant designs to achieve high availability.
Potential failure modes include overvoltage, undervoltage, overheating, and component failure. To mitigate these, ensure proper input voltage regulation, use overcurrent protection, and implement thermal monitoring and shutdown. Also, follow the recommended maintenance and replacement schedules.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
i7C4W012A050V-001-R Overview

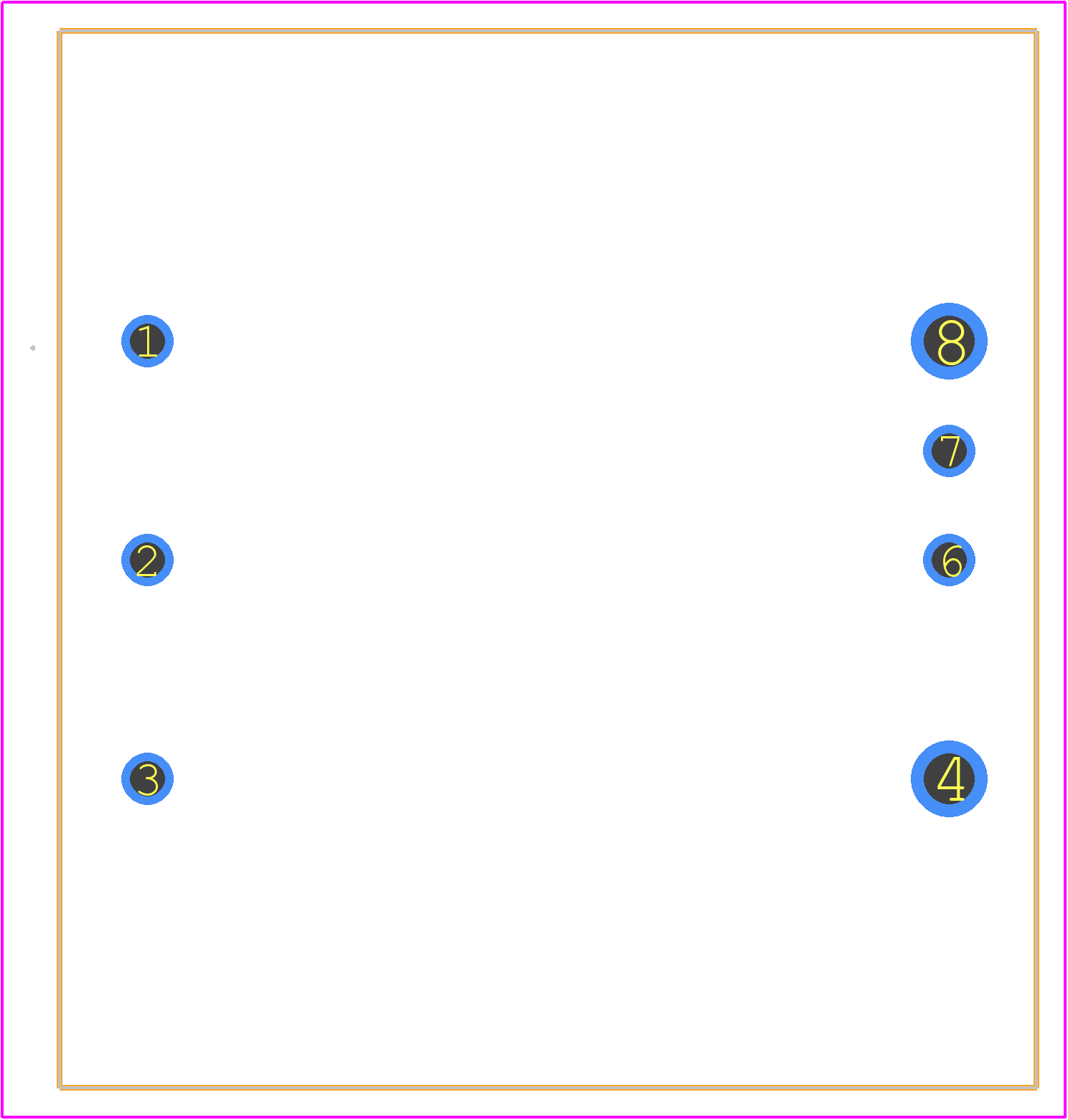

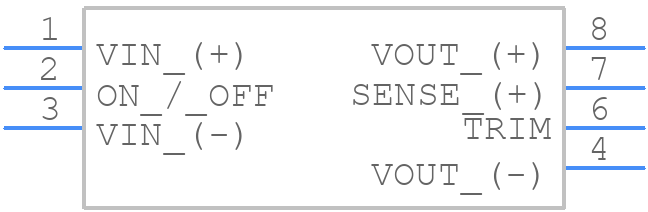

Use the download button to access the i7C4W012A050V-001-R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like i7C4W,
or try a keyword search, such as Power Supply Modules
