IA188XLPLC68IR2 - Analog Devices

Description: 16-bit Microcontrollers - MCU FS70AA001A - Repl for Intel 80C188XL

Download IA188XLPLC68IR2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
IA188XLPLC68IR2 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

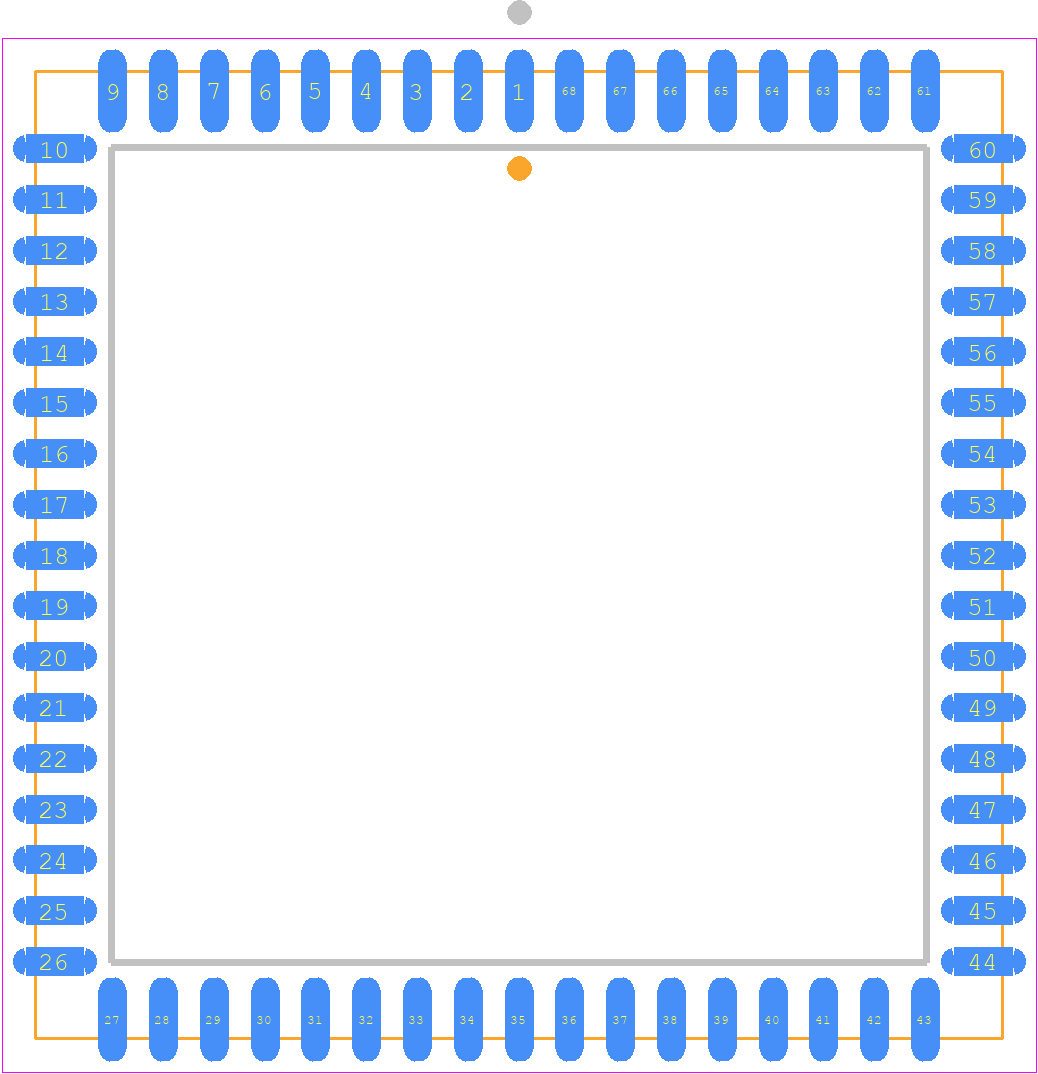

IA188XLPLC68IR2 - Analog Devices PCB footprint - Plastic Leaded Chip Carrier - Plastic Leaded Chip Carrier - 68-Lead PLCC
click to zoom
3D Models
IA188XLPLC68IR2 - Analog Devices - 3D model - Plastic Leaded Chip Carrier - 68-Lead PLCC
click to zoom

IA188XLPLC68IR2 Details

  • Manufacturer Part Number:

    IA188XLPLC68IR2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT, PLASTIC, LCC-68

  • HTS Code:

    8542.31.00.20

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Has ADC:

    NO

  • Address Bus Width:

    20

  • Bit Size:

    16

  • Clock Frequency-Max:

    25 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • External Data Bus Width:

    16

  • JESD-30 Code:

    S-PQCC-J68

  • JESD-609 Code:

    e3

  • Length:

    24.21 mm

  • Number of Terminals:

    68

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    NO

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCJ

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Seated Height-Max:

    4.572 mm

  • Speed:

    50 MHz

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    J BEND

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    QUAD

  • Width:

    24.21 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

IA188XLPLC68IR2 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a decoupling capacitor (e.g., 10uF) close to the device's power pins.
  • The IA188XLPLC68IR2 has an internal calibration mechanism. However, it's essential to follow the recommended calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the internal calibration registers accordingly.
  • The IA188XLPLC68IR2 is sensitive to power supply noise. It's recommended to keep the power supply noise below 10mV peak-to-peak to ensure optimal performance. Use a low-noise power supply and consider adding a filter capacitor (e.g., 10uF) close to the device's power pins.
  • The IA188XLPLC68IR2 is rated for operation up to 125°C. However, it's essential to consider the device's thermal characteristics and ensure proper heat dissipation in high-temperature environments. Use a heat sink or thermal pad if necessary.
  • Start by verifying the power supply and clock signals. Check the device's output for any signs of oscillation or instability. Use an oscilloscope to inspect the input and output signals. Consult the datasheet and application notes for troubleshooting guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IA188XLPLC68IR2 Overview

Use the download button to access the IA188XLPLC68IR2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IA188, or try a keyword search, such as Microcontrollers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
