- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for IAC5A
- Part Number IAC5A
- Manufacturer CRYDOM
- Pin Count 6
- Part Category Relay or Contactor
- Package Category Other

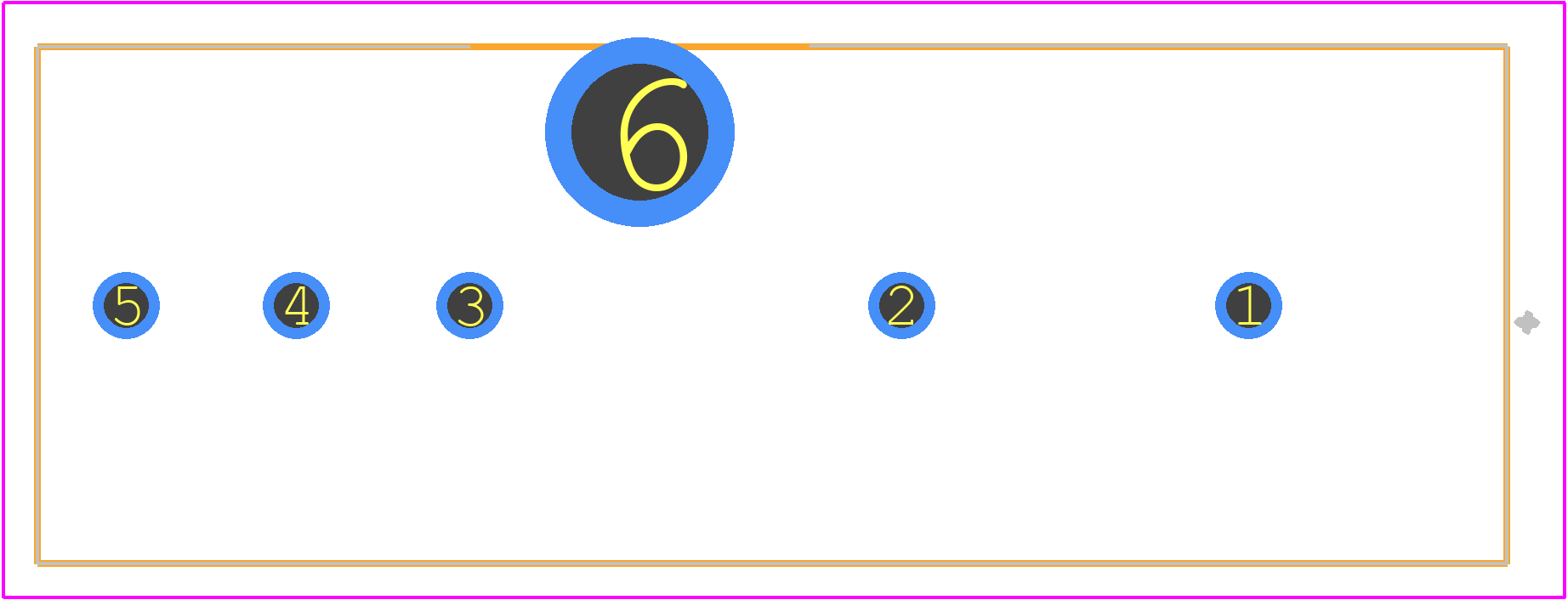

- Footprint Name Other - IAC5A-3
- Released Date Nov 9, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
IAC5A Details
-
Manufacturer Part Number:
IAC5A
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Transferred
-
HTS Code:
8541.40.80.00
-
Date Of Intro:
1998-07-08
-
Manufacturer:
Crydom Inc
-
Configuration:
SINGLE
-
Forward Current-Max:
0.008 A
-
Isolation Voltage-Max:
4000 V
-
Number of Elements:
1
-
Operating Temperature-Max:
80 °C
IAC5A Frequently Asked Questions (FAQs)
-
The IAC5A can handle surge currents up to 100A for 1ms, making it suitable for applications with high inrush currents.
-
The IAC5A has built-in overvoltage protection, which limits the output voltage to 15V during overvoltage conditions, protecting the load from damage.
-
The IAC5A has a thermal derating of 1.5% per degree Celsius above 50°C, ensuring reliable operation even in high-temperature environments.
-
Yes, the IAC5A can be used in parallel to increase the current handling capability, but it's essential to ensure that the units are properly synchronized and matched to avoid uneven current sharing.
-
For optimal thermal performance, it's recommended to use a PCB layout with a large copper area under the IAC5A, and to ensure good airflow around the device.
Trust Checks
Expert Contribution
System Verified
Community Approved
IAC5A Overview

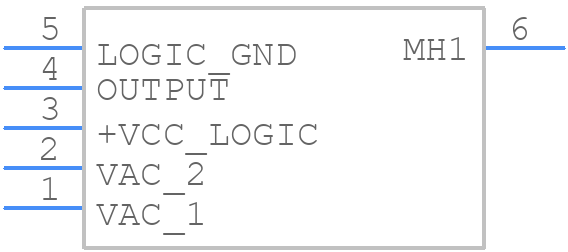

Use the download button to access the IAC5A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search
or try a keyword search, such as Solid State Relays
