TDK recommends a symmetrical PCB layout with a solid ground plane to minimize electromagnetic interference (EMI) and ensure optimal performance. A minimum of 2-layer PCB is recommended, with the component mounted on the top layer and the ground plane on the bottom layer.
The IAM-20381 has a maximum operating temperature of 125°C. To ensure reliable operation, it is recommended to provide adequate thermal management, such as using a heat sink or thermal pad, especially in high-power applications.
TDK recommends a soldering profile with a peak temperature of 260°C for 10-30 seconds, and a maximum temperature of 240°C for 60 seconds. It is also recommended to use a solder with a melting point of 217°C or higher.
Yes, the IAM-20381 is designed to withstand high-vibration environments. However, it is recommended to follow TDK's guidelines for vibration testing and to ensure that the component is properly secured to the PCB to prevent mechanical stress.
To troubleshoot issues with IAM-20381, start by checking the PCB layout and soldering quality. Verify that the component is properly powered and that the input and output signals are within the recommended specifications. If the issue persists, contact TDK's technical support for further assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IAM-20381 Overview

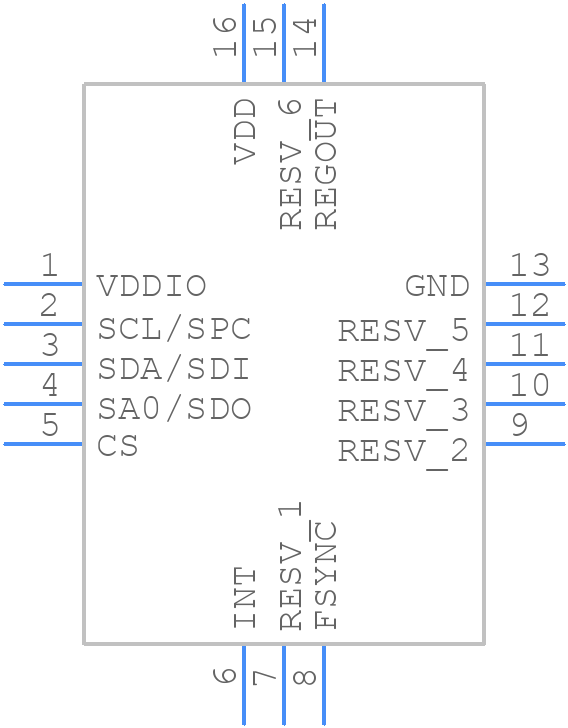

Use the download button to access the IAM-20381 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IAM-2,
or try a keyword search, such as Other Sensors/Transducers
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
