TDK recommends a symmetrical PCB layout with a solid ground plane to minimize electromagnetic interference (EMI) and ensure optimal performance. A minimum of 2-layer PCB is recommended, with the component mounted on the top layer and the ground plane on the bottom layer.
The IAM-20680HP has a high power density, so thermal management is crucial. TDK recommends using a heat sink or a thermal pad to dissipate heat. The component's thermal pad should be connected to a solid ground plane or a heat sink to ensure efficient heat dissipation.
TDK recommends a soldering profile with a peak temperature of 260°C (500°F) and a dwell time of 10-30 seconds. The component should be soldered using a no-clean flux and a solder with a melting point of 217°C (423°F) or higher.
Yes, the IAM-20680HP is designed to withstand high-vibration environments. However, TDK recommends following the recommended mounting and soldering procedures to ensure the component's reliability and performance.
To troubleshoot issues with IAM-20680HP, TDK recommends checking the component's soldering, PCB layout, and thermal management. Ensure that the component is properly soldered, the PCB layout is symmetrical, and the thermal management is adequate. If the issue persists, contact TDK's technical support for further assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IAM-20680HP Overview

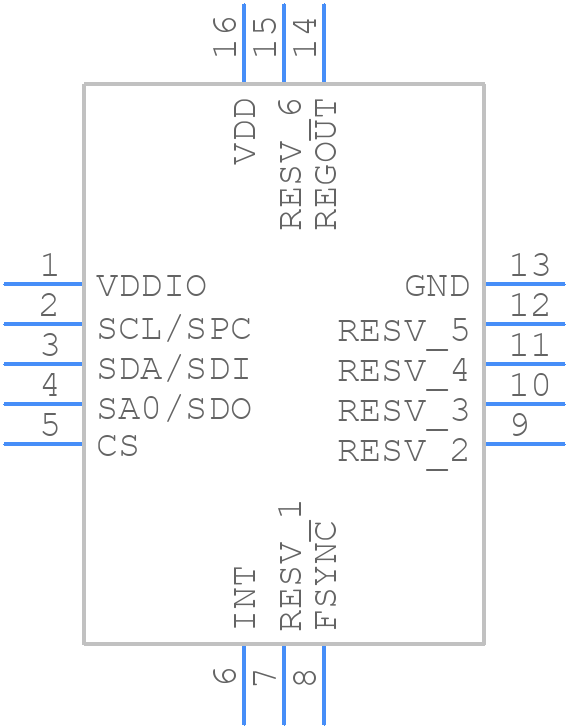

Use the download button to access the IAM-20680HP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IAM-2,
or try a keyword search, such as Other Sensors/Transducers
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
