The maximum operating temperature range for the IAUS300N10S5N015TATMA1 is -40°C to 150°C, as specified in the datasheet.
Proper thermal management can be achieved by ensuring good heat sink contact, using a suitable thermal interface material, and maintaining a low thermal resistance between the module and heat sink. Additionally, the module's thermal pad should be connected to a low-impedance thermal path.
The recommended gate resistor value for the IAUS300N10S5N015TATMA1 is typically in the range of 10 ohms to 20 ohms, depending on the specific application and switching frequency. However, it's essential to consult the datasheet and application notes for more detailed guidance.
Yes, the IAUS300N10S5N015TATMA1 can be used in a parallel configuration, but it's crucial to ensure that the modules are properly matched, and the gate drive and control circuits are designed to handle the parallel configuration. Consult the datasheet and application notes for more information.
The maximum allowable voltage transient for the IAUS300N10S5N015TATMA1 is typically specified as 1.5 times the maximum rated voltage (Vces) for a duration of 10 microseconds. However, it's essential to consult the datasheet and application notes for more detailed information.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IAUS300N10S5N015TATMA1 Overview

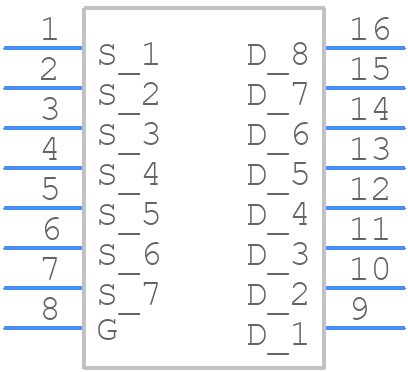

Use the download button to access the IAUS300N10S5N015TATMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IAUS3,
or try a keyword search, such as Power Field-Effect Transistors
