IC-MA3QFN16-4X4 - ic-haus

Description: Angular Hall Sensor w/Sin/Cos Output

Download IC-MA3QFN16-4X4 Model
Schematic

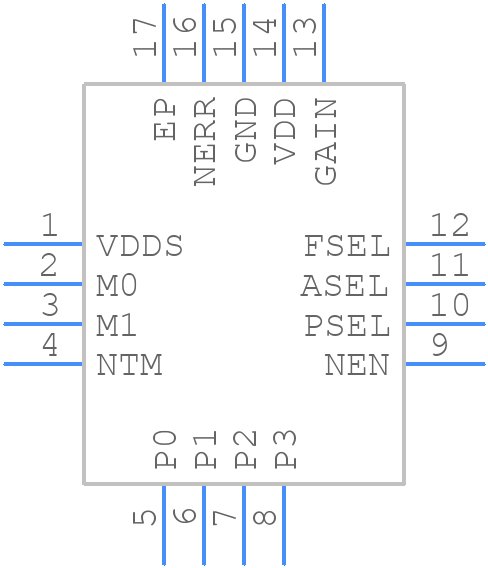

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
IC-MA3QFN16-4X4 - ic-haus PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN16-4X4
click to zoom
3D Models
IC-MA3QFN16-4X4 - ic-haus  - 3D model - Quad Flat No-Lead - QFN16-4X4
click to zoom

IC-MA3QFN16-4X4 Details

  • Manufacturer Part Number:

    IC-MA3QFN16-4X4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    4 X 4 MM, 0.90 MM HEIGHT, ROHS COMPLIANT, MO-220, QFN-16

  • Manufacturer:

    iC-Haus

  • Body Breadth:

    4 mm

  • Body Height:

    0.9 mm

  • Body Length or Diameter:

    4 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Current-Max:

    20 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    VOLTAGE OUTPUT

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    MAGNETIC FIELD SENSOR,HALL EFFECT

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER
