IC-MHMQFN28-5X5 - ic-haus

Description: 14-BIT ABSOLUTE ANGLE HALL ENCODER -40 to +125 °C (1 Vpp into 100 Ω

Download IC-MHMQFN28-5X5 Model

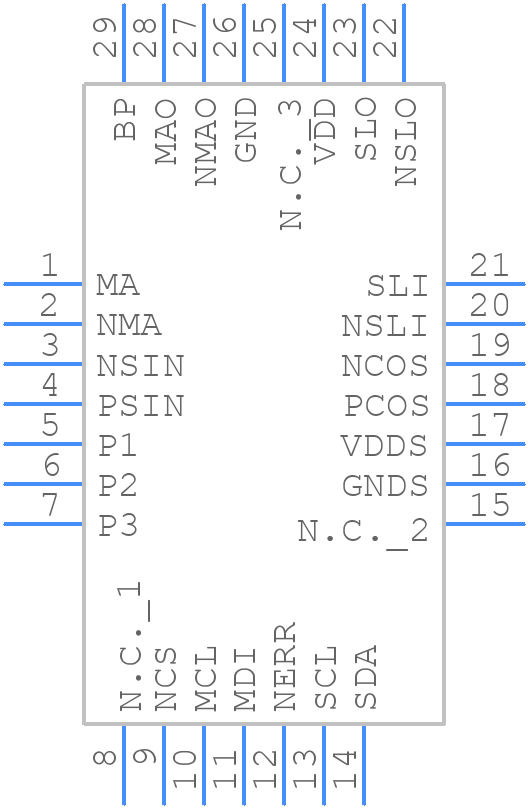

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
IC-MHMQFN28-5X5 - ic-haus PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - IC-MB4
click to zoom
3D Models
IC-MHMQFN28-5X5 - ic-haus  - 3D model - Quad Flat No-Lead - IC-MB4
click to zoom

IC-MHMQFN28-5X5 Details

  • Manufacturer Part Number:

    IC-MHMQFN28-5X5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    QFN-28

  • Manufacturer:

    iC-Haus

  • Additional Feature:

    REVERSE POLARITY PROTECTION

  • Body Breadth:

    5 mm

  • Body Height:

    0.9 mm

  • Body Length or Diameter:

    5 mm

  • Measurement Range-Max (deg):

    360 deg

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Current-Max:

    32 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    BISS/SSI

  • Output Range:

    0.90-1.60V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    ROTARY POSITION SENSOR,HALL EFFECT

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

IC-MHMQFN28-5X5 Frequently Asked Questions (FAQs)

  • A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • Operate the device within the recommended voltage and current limits, and ensure proper thermal management. Also, consider the device's thermal shutdown feature to prevent overheating.
  • A reflow soldering profile with a peak temperature of 240°C to 250°C, and a dwell time of 30-60 seconds is recommended. Avoid exceeding 260°C to prevent damage.
  • The POR and BOR features are enabled by default. Ensure that your system design can handle the reset signals generated by these features, and consider disabling them if not needed.
  • Follow proper PCB design and layout guidelines to minimize EMI. Use shielding, filtering, and grounding techniques to reduce emissions and improve immunity.
