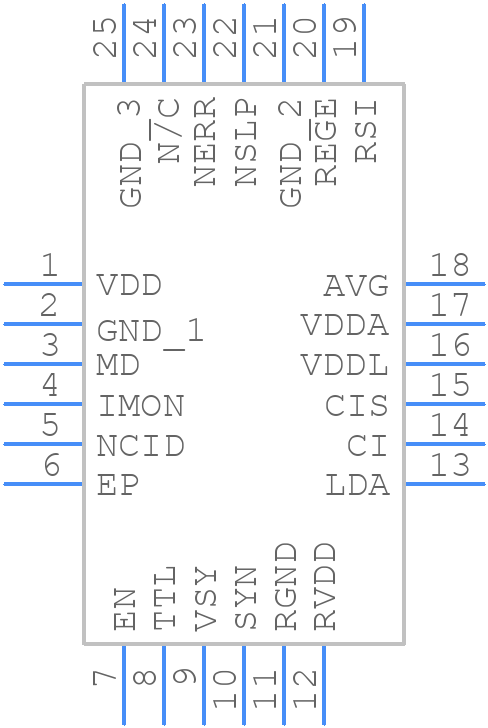

IC-NZPQFN24-4X4 - ic-haus

IC-NZPQFN24-4X4 Details

• Manufacturer Part Number:

  IC-NZPQFN24-4X4

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Contact Manufacturer

• Package Description:

  4 X 4 MM, QFN-24

• HTS Code:

  8542.39.00.01

• Manufacturer:

  iC-Haus

• Additional Feature:

  SEATED HGT-NOM

• Interface IC Type:

  INTERFACE CIRCUIT

• JESD-30 Code:

  S-XQCC-N24

• JESD-609 Code:

  e3

• Length:

  4 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  24

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -20 °C

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVQCCN

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  0.9 mm

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  3 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Temperature Grade:

  OTHER

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  20

• Width:

  4 mm
