IC-WKMSOP8 - ic-haus

Description: M-TYPE CW LASER DIODE DRIVER

Download IC-WKMSOP8 Model

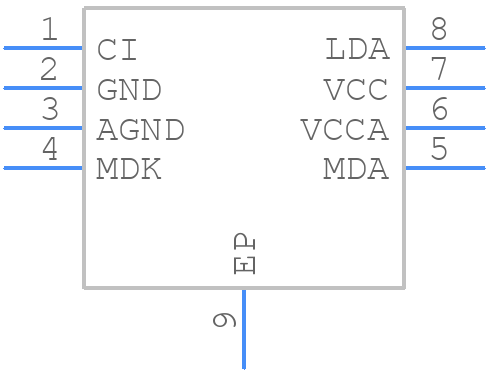

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
IC-WKMSOP8 - ic-haus PCB footprint - Small Outline Packages - Small Outline Packages - IC-WKMSOP8
click to zoom
3D Models
IC-WKMSOP8 - ic-haus  - 3D model - Small Outline Packages - IC-WKMSOP8
click to zoom

IC-WKMSOP8 Details

  • Manufacturer Part Number:

    IC-WKMSOP8

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ,

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    iC-Haus

  • YTEOL:

    0

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Temperature Grade:

    INDUSTRIAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED
