IC120-0284-308 - Yamaichi

Description: IC & Component Sockets 28 PIN PLCC 1.27 MM PITCH

Download IC120-0284-308 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
IC120-0284-308 - Yamaichi - PCB symbol
click to zoom
PCB Footprints

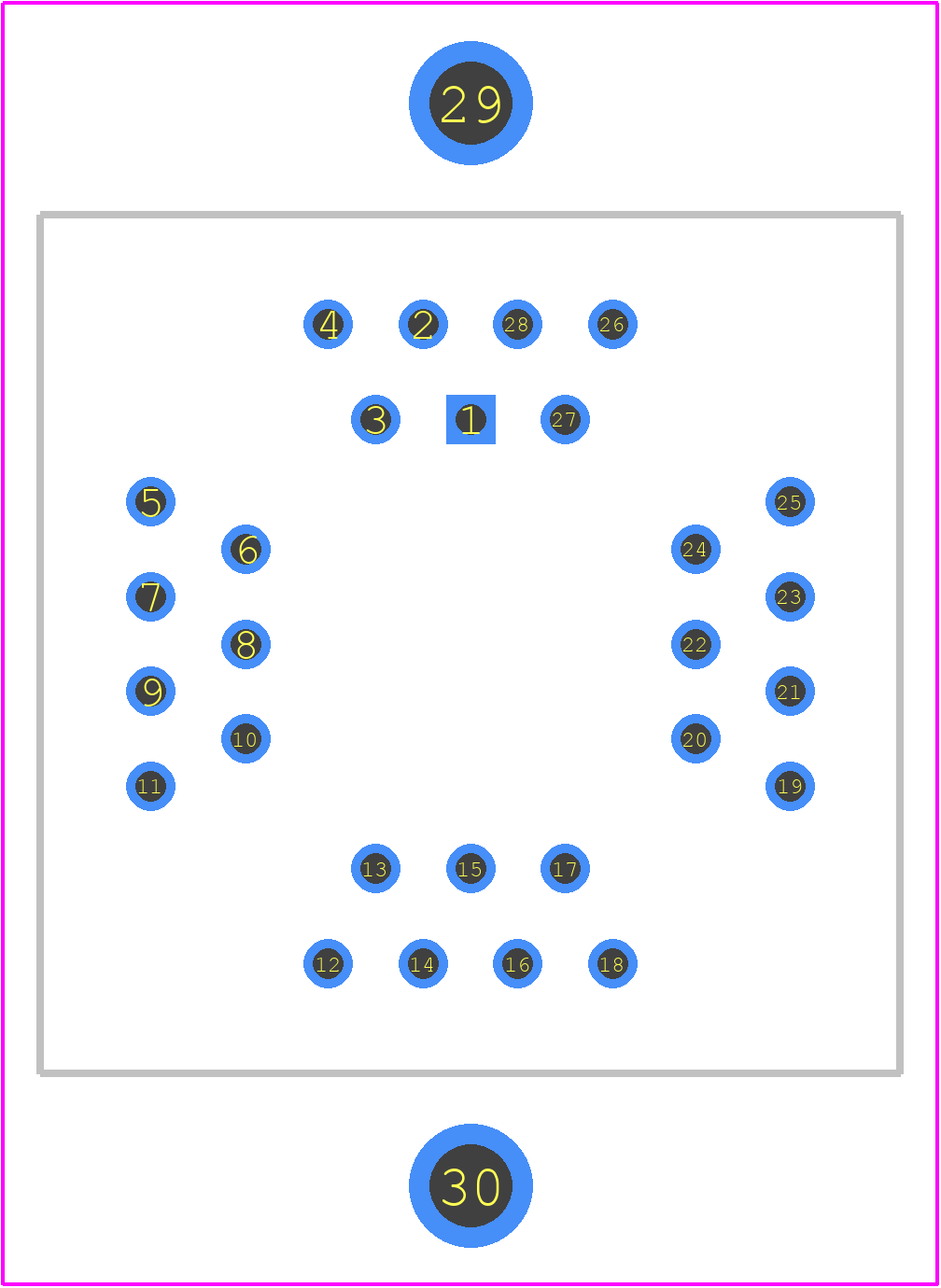

IC120-0284-308 - Yamaichi PCB footprint - Other - Other - IC120-0284-308
click to zoom
3D Models
IC120-0284-308 - Yamaichi - 3D model - Other - IC120-0284-308
click to zoom

IC120-0284-308 Details

  • Manufacturer Part Number:

    IC120-0284-308

  • Part Life Cycle Code:

    Contact Manufacturer

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Yamaichi Electronics Co Ltd

  • Additional Feature:

    LIVE-BUG TYPE

  • Body Breadth:

    0.906 inch

  • Body Depth:

    0.709 inch

  • Body Length:

    0.906 inch

  • Contact Configuration:

    7X7

  • Contact Finish Mating:

    AU ON NI

  • Contact Material:

    BE-CU

  • Contact Style:

    BELLOWED TYPE

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    PLCC28

  • Dielectric Withstanding Voltage:

    700VAC V

  • Housing Material:

    POLYPHENYLENE SULFIDE

  • Insulation Resistance:

    1000000000 Ω

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    28

  • Operating Temperature-Max:

    170 °C

  • Operating Temperature-Min:

    -40 °C

  • Termination Type:

    SOLDER
