IC120-0684-204 footprint, schematic symbol and 3D model by Yamaichi

Symbol

click to zoom

PCB Footprints

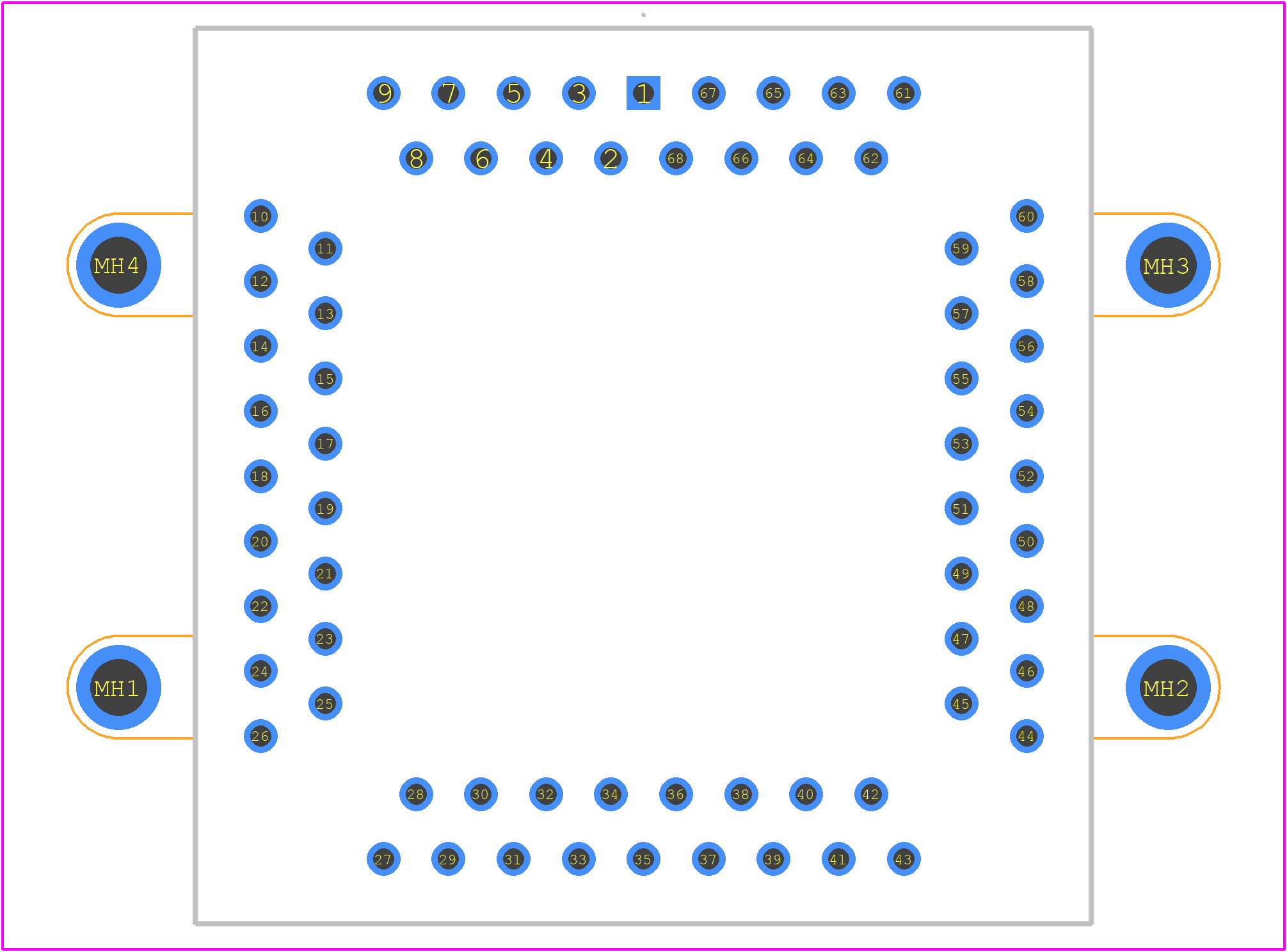

IC120-0684-204 - Yamaichi PCB footprint - Other - Other - IC120-0684-204-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for IC120-0684-204
Part Number IC120-0684-204
Manufacturer Yamaichi
Pin Count 72
Part Category Connector
Package Category Other
Footprint Name Other - IC120-0684-204-2
Released Date Jan 20, 2023
Last Modified Date Mar 15, 2025 9:52 AM UTC
Pinout / Pin List Click Here (Member Only)

IC120-0684-204 Details

Manufacturer Part Number:
IC120-0684-204
Part Life Cycle Code:
Contact Manufacturer
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Yamaichi Electronics Co Ltd
Additional Feature:
DEAD-BUG TYPE
Body Breadth:
1.378 inch
Body Depth:
0.709 inch
Body Length:
1.378 inch
Contact Configuration:
17X17
Contact Finish Mating:
AU ON NI
Contact Material:
BE-CU
Contact Style:
BELLOWED TYPE
Device Socket Type:
IC SOCKET
Device Type Used On:
PLCC68
Dielectric Withstanding Voltage:
700VAC V
Housing Material:
POLYPHENYLENE SULFIDE
Insulation Resistance:
1000000000 Ω
Mounting Style:
STRAIGHT
Number of Contacts:
68
Operating Temperature-Max:
170 °C
Operating Temperature-Min:
-40 °C
Termination Type:
SOLDER

IC120-0684-204 Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5 N·m to 1.5 N·m, as specified in the manufacturer's application notes.
Yes, the IC120-0684-204 is designed to withstand vibrations up to 10 Hz to 2000 Hz, 10 G acceleration, as per the IEC 60068-2-6 standard.
The IC120-0684-204 is rated for operation in temperatures ranging from -40°C to 125°C and humidity up to 95% RH, making it suitable for use in harsh environments.
The IC120-0684-204 has a mating cycle life of 500 cycles, as specified in the manufacturer's reliability testing.
Yes, the IC120-0684-204 is designed to accommodate cables with gauges ranging from AWG 24 to AWG 20, but it's recommended to consult the manufacturer's cable assembly guidelines for specific applications.
