IC149-044-052-B5 - Yamaichi

Description: IC & Component Sockets 44pin 0.8 pitch QFP IC Skt

Download IC149-044-052-B5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

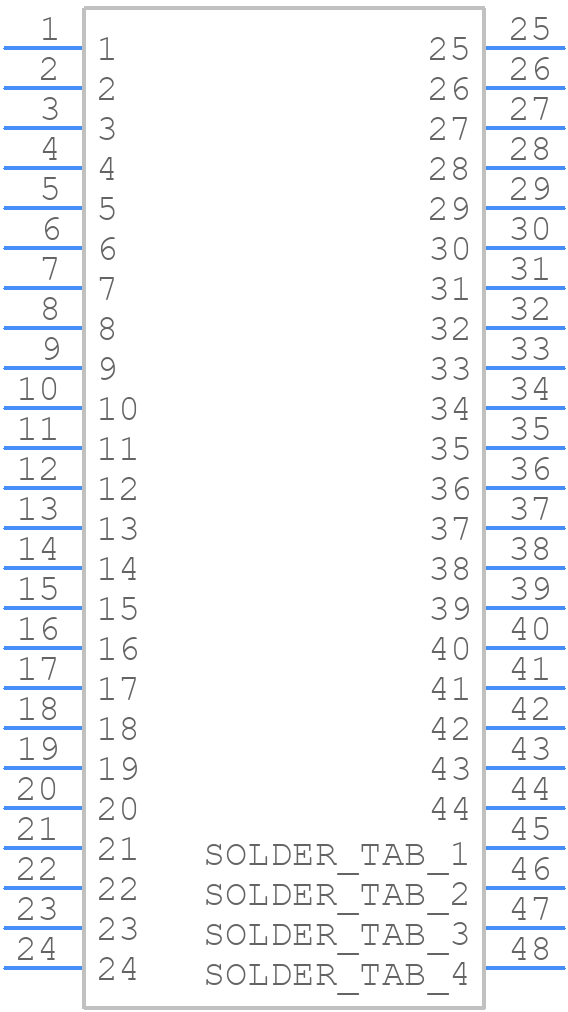

Symbol
IC149-044-052-B5 - Yamaichi - PCB symbol
click to zoom

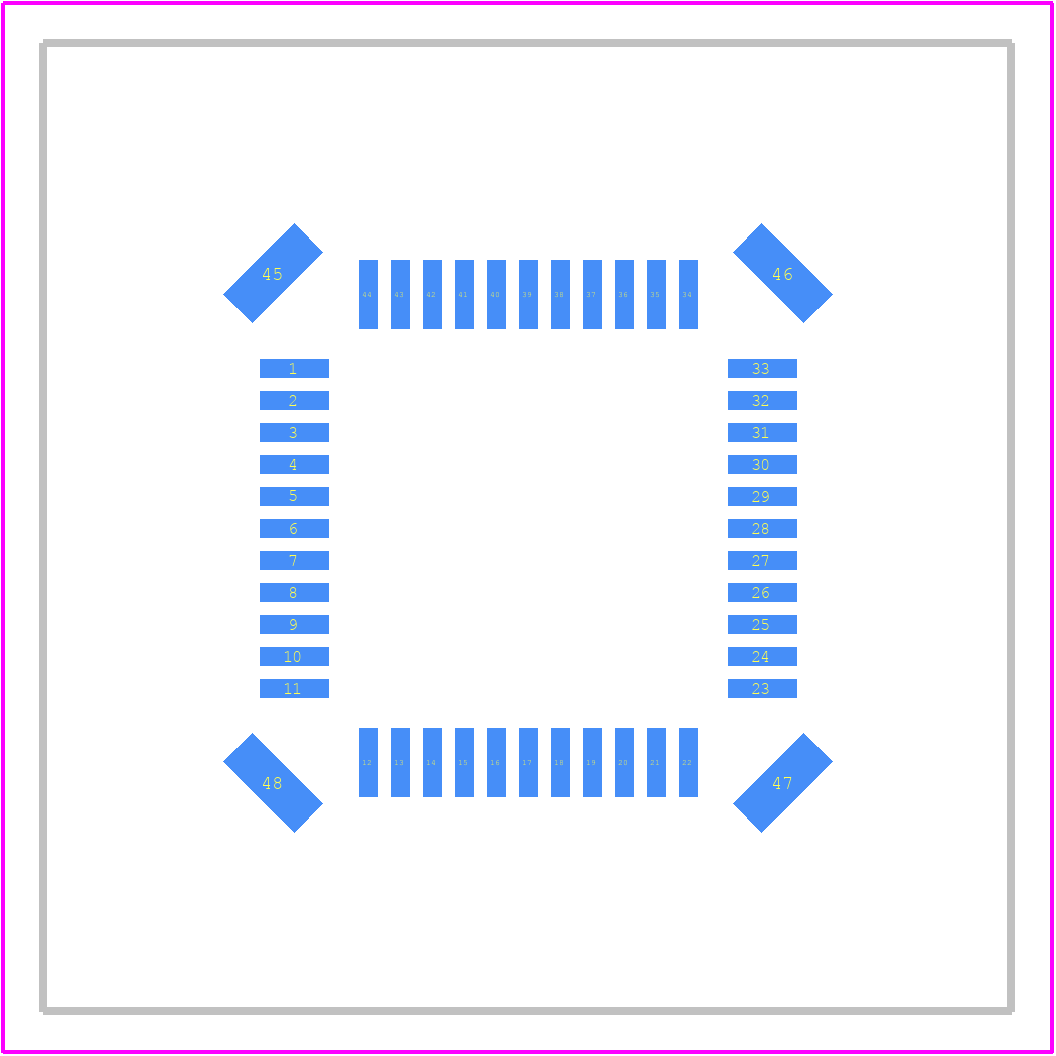

PCB Footprints
IC149-044-052-B5 - Yamaichi PCB footprint - Other - Other - IC149-044-052-B5
click to zoom
3D Models
IC149-044-052-B5 - Yamaichi - 3D model - Other - IC149-044-052-B5
click to zoom

IC149-044-052-B5 Details

  • Manufacturer Part Number:

    IC149-044-052-B5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Yamaichi Electronics Co Ltd

  • Additional Feature:

    WITH SOLDER TAB

  • Body Breadth:

    0.953 inch

  • Body Depth:

    0.433 inch

  • Body Length:

    0.953 inch

  • Contact Finish Mating:

    AU ON NI

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Material:

    CU ALLOY

  • Contact Style:

    BELLOWED TYPE

  • Current Rating:

    0.5 A

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    QFP44

  • Dielectric Withstanding Voltage:

    150VAC V

  • Housing Material:

    PLASTIC

  • Insulation Resistance:

    500000000 Ω

  • JESD-609 Code:

    e4

  • Mating Contact Pitch:

    0.031 inch

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    44

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • Terminal Pitch:

    0.7874 mm

  • Termination Type:

    SURFACE MOUNT

IC149-044-052-B5 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 N·m to 1.5 N·m, as specified in the manufacturer's application notes.
  • Yes, the IC149-044-052-B5 is designed to withstand vibrations up to 10 Hz to 2000 Hz, 10 G acceleration, as per the manufacturer's reliability testing.
  • The IC149-044-052-B5 is rated for operation in temperatures ranging from -40°C to 105°C and humidity up to 90% RH, making it suitable for use in harsh environments.
  • The IC149-044-052-B5 has a mating cycle life of at least 500 cycles, as specified in the manufacturer's reliability testing.
  • Yes, the IC149-044-052-B5 is designed to accommodate cables with gauges ranging from AWG 24 to AWG 20, but it's recommended to consult the manufacturer's application notes for specific guidance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IC149-044-052-B5 Overview

Use the download button to access the IC149-044-052-B5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IC149, or try a keyword search, such as Sockets and Chip Carriers
