- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for IC149-080-017-B5
- Part Number IC149-080-017-B5
- Manufacturer Yamaichi
- Pin Count 82
- Part Category Connector
- Package Category Other

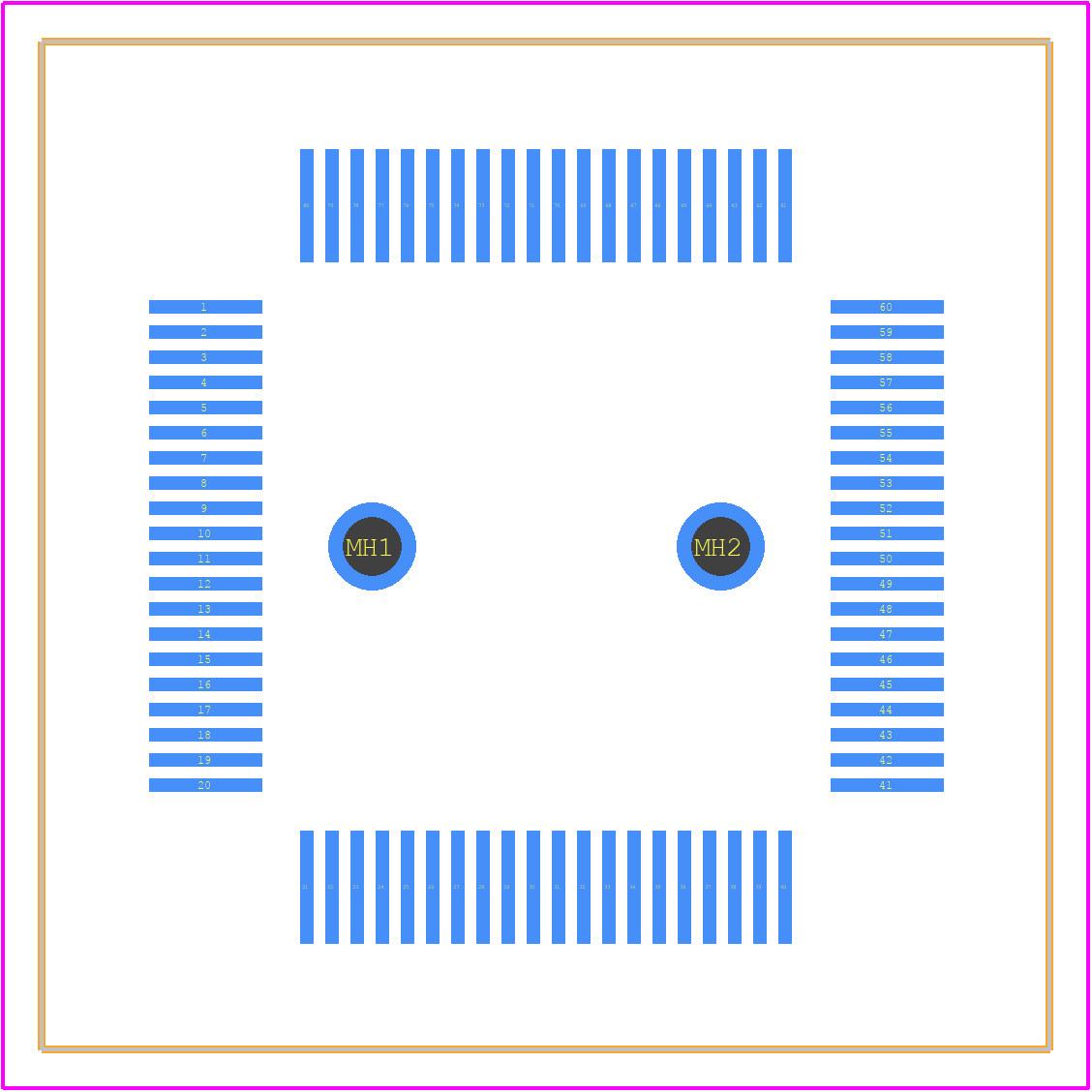

- Footprint Name Other - IC149-080-017-B5-4
- Released Date Jan 18, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
IC149-080-017-B5 Details
-
Manufacturer Part Number:
IC149-080-017-B5
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Manufacturer:
Yamaichi Electronics Co Ltd
-
YTEOL:
6.5
-
Body Breadth:
0.551 inch
-
Body Depth:
0.118 inch
-
Body Length:
0.551 inch
-
Contact Configuration:
20X20
IC149-080-017-B5 Frequently Asked Questions (FAQs)
-
The operating temperature range of the IC149-080-017-B5 connector is -40°C to 105°C.
-
Yes, the IC149-080-017-B5 connector is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the European Union's directive on the restriction of certain hazardous substances in electrical and electronic equipment.
-
The mating cycle of the IC149-080-017-B5 connector is 500 cycles, which refers to the number of times the connector can be mated and unmated without compromising its performance.
-
Yes, the IC149-080-017-B5 connector is designed to withstand high-vibration environments, making it suitable for applications such as industrial control systems, automotive systems, and aerospace systems.
-
The contact resistance of the IC149-080-017-B5 connector is typically less than 10 milliohms, which ensures reliable signal transmission and low power loss.
Trust Checks
Expert Contribution
System Verified
Community Approved
IC149-080-017-B5 Overview
Use the download button to access the IC149-080-017-B5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IC149,
or try a keyword search, such as Sockets and Chip Carriers
