IC160Z-0324-2401 - Yamaichi

Description: IC & Component Sockets 32P PLCC SMT TYPE 1 W/O POS PIN, 1A max., 500MΩ min. at 500V DC, -55°C ~ +85°C

Download IC160Z-0324-2401 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

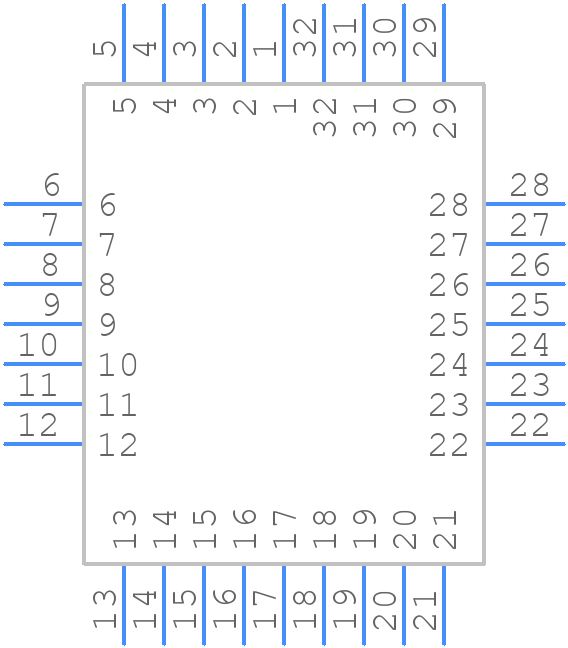

IC160Z-0324-2401 - Yamaichi - PCB symbol
click to zoom
PCB Footprints

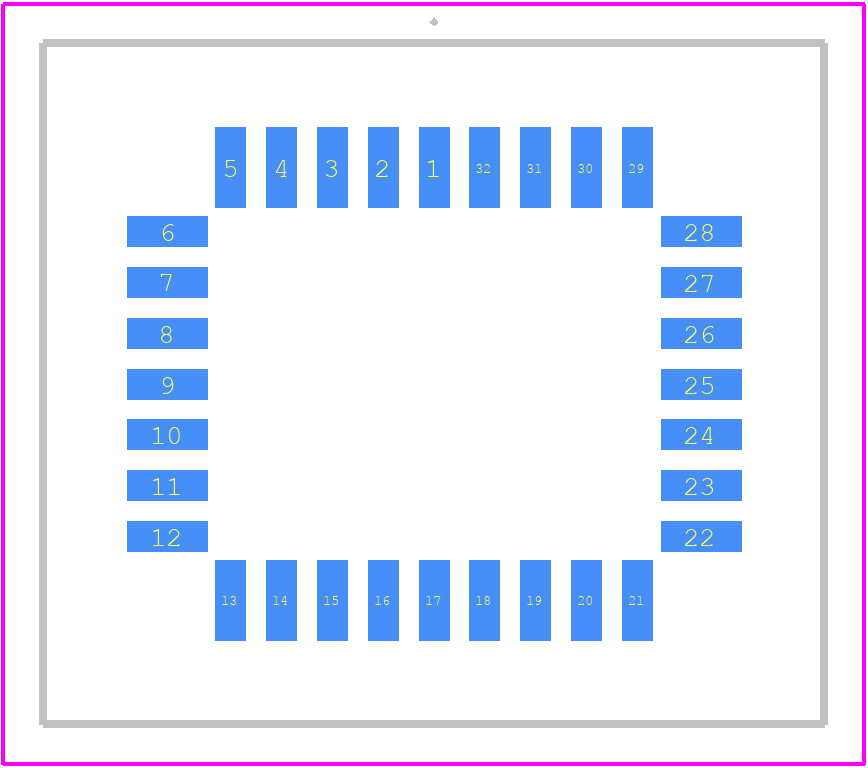

IC160Z-0324-2401 - Yamaichi PCB footprint - Other - Other - PLCC-32_2026
click to zoom
3D Models
IC160Z-0324-2401 - Yamaichi - 3D model - Other - PLCC-32_2026
click to zoom

IC160Z-0324-2401 Details

  • Manufacturer Part Number:

    IC160Z-0324-2401

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Yamaichi Electronics Co Ltd

  • YTEOL:

    6.83

  • Additional Feature:

    LOW PROFILE; UL 94V-0

  • Contact Finish Mating:

    TIN BISMUTH

  • Contact Finish Termination:

    TIN BISMUTH

  • Contact Material:

    COPPER ALLOY

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    PLCC32

  • Housing Material:

    POLYAMIDE

  • JESD-609 Code:

    e6

  • Number of Contacts:

    32
