IC200-2084-010 - Yamaichi

Description: IC & Component Sockets 208 PIN QFP 0.50 MM PITCH

Download IC200-2084-010 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
IC200-2084-010 - Yamaichi - PCB symbol
click to zoom
PCB Footprints

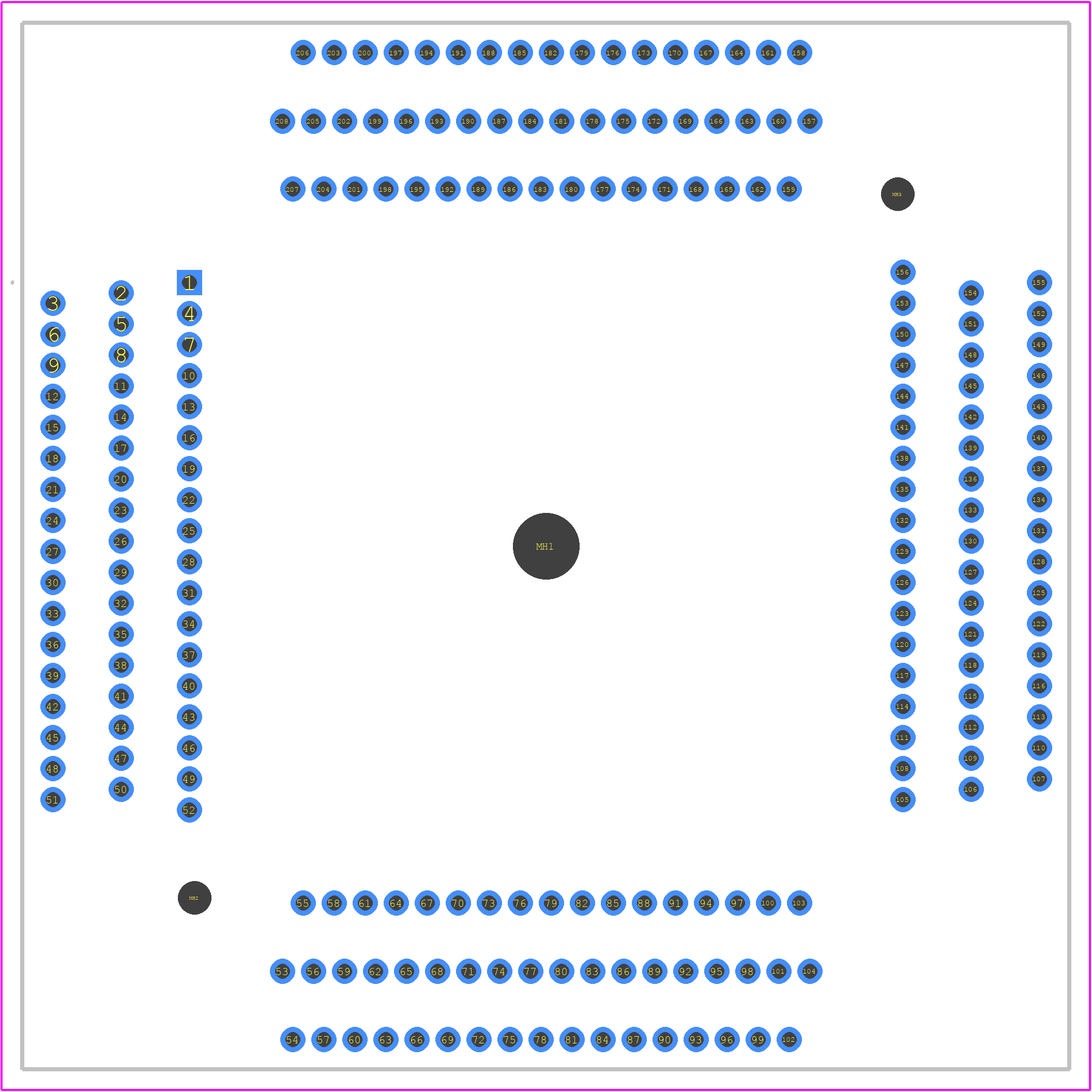

IC200-2084-010 - Yamaichi PCB footprint - Other - Other - IC200-2084-010-2
click to zoom
3D Models
IC200-2084-010 - Yamaichi - 3D model - Other - IC200-2084-010-2
click to zoom

IC200-2084-010 Details

  • Manufacturer Part Number:

    IC200-2084-010

  • Part Life Cycle Code:

    Contact Manufacturer

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Yamaichi Electronics Co Ltd

  • Additional Feature:

    WITHOUT PROTECTION KEY

  • Body Breadth:

    1.992 inch

  • Body Depth:

    0.63 inch

  • Body Length:

    1.992 inch

  • Contact Finish Mating:

    AU ON NI

  • Contact Material:

    BE-CU

  • Contact Style:

    BELLOWED TYPE

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    QFP208

  • Dielectric Withstanding Voltage:

    700VAC V

  • Housing Material:

    POLYETHERIMIDE

  • Insulation Resistance:

    1000000000 Ω

  • Mating Contact Pitch:

    0.02 inch

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    208

  • Operating Temperature-Max:

    170 °C

  • Operating Temperature-Min:

    -40 °C

  • PCB Contact Pattern:

    STAGGERED

  • Terminal Pitch:

    1.498 mm

  • Termination Type:

    SOLDER

IC200-2084-010 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 N·m to 1.5 N·m, as specified in the manufacturer's application notes.
  • Yes, the IC200-2084-010 is designed to withstand vibrations up to 10 G (10-2000 Hz) and shocks up to 100 G (11 ms), making it suitable for use in high-vibration environments.
  • Yes, the IC200-2084-010 is compatible with lead-free soldering processes, with a recommended soldering temperature of 260°C (500°F) for 10 seconds or less.
  • The operating temperature range for the IC200-2084-010 is -40°C to 105°C (-40°F to 221°F), making it suitable for use in a wide range of applications.
  • The IC200-2084-010 has a moisture sensitivity level (MSL) of 3, which means it can withstand humidity up to 30°C (86°F) and 60% relative humidity. However, it is not designed for use in wet or submerged environments.
